Description

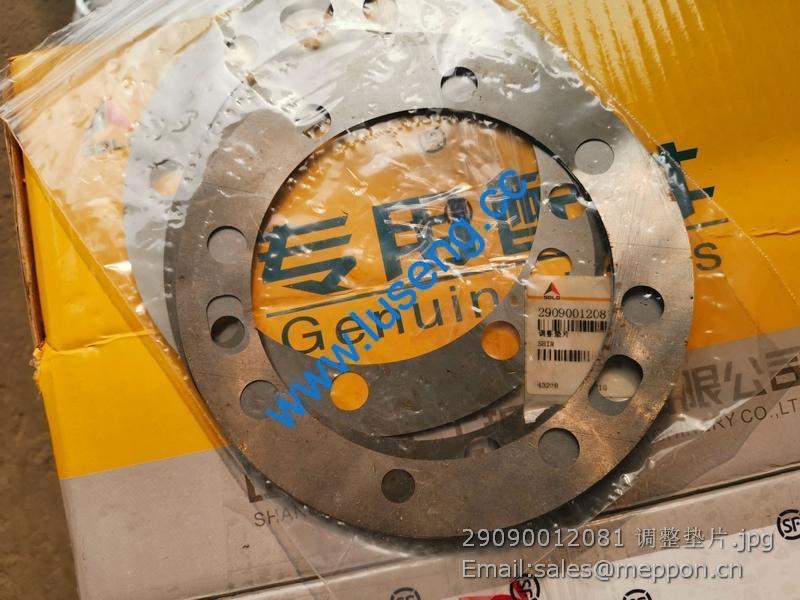

29090012081 SDLG SHIM
23 4011000136 螺栓 GB16674-M10*85EpZn-8.8 BOLT GB16674-M10*85EpZn-8.8 N 4
24 4041000774 螺塞 LGB135-01422 PLUG LGB13501421 Y 2
25 4041000767 O 形圈 LGB168-11124 O-RING LGB168-11124 Y 2
26 29120014981 多路阀进油胶管 OIL INPUT PIPE OF CONTROL VAVLE Y 1
27 4041000056 分体法兰 LGB117-312550 FLANGE LGB117-312550 Y 2
28 4011000475 螺栓 GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8 N 12
29 29120001402 操纵软轴 CONTROL AXIS Y 2
30 4120001019 操纵机构 LG12-953CZJG01 OPERATING GEAR LG12-953CZJG01 Y 1
31 29120009111 护板 COVER SHEET Y 1
32 29120000071 销轴 PIN Y 2
33 4016000035 开口销 GB91-4*20EpZn-Q235A SPLIT PIN 4*20 N 2
34 4030000031 O 形圈 GB3452.1-42.5*3.55G O-RING GB3452.1-42.5*3.55G Y 1
35 4011000479 螺栓 GB16674-M12*30EpZn-8.8 BOLT GB16674-M12*30EpZn-8.8 N 8
1 4120001715 齿轮泵 JHP3160 GEAR PUMP JHP3160 Y 1
2 4011000473 螺栓 GB16674-M10*55EpZn-8.8 BOLT GB16674-M10*55EpZn-8.8 N 4
3 29110001021 出油钢管 OUT-OIL TUBE Y 1
4 4030000029 O 形圈 GB3452.1-37.5*3.55G O-RING GB3452.1-37.5*3.55G Y 1
5 4012000003 螺柱 GB898-M12*35EpZn-8.8 DOUBLE-SCREW BOLT GB898-M12*35EpZn-8.8 N 4
6 4013000011 螺母 GB6170-M12EpZn-8 NUT GB6170-M12 EpZn-8 N 4
7 4015000168 垫圈 GB97.1-12EpZn-300HV WASHER GB97.1-12EpZn-300HV N 4
8 29110000041 泵用密封垫 SEALING WASHER Y 1
9 4030000133 O 形圈 GB3452.1-56.0*3.55G O-RING GB3452.1-56.0*3.55G Y 1
10 4041000009 分体法兰 LGB117-320760 FLANGE LGB117-320760 Y 1
11 4011000320 螺栓 GB16674-M12*40EpZn-8.8 BOLT GB16674-M12*40EpZn-8.8 N 4
12 29110001061 工作泵吸油钢管 INTAKE OIL TUBE OF PUMP Y 1
13 4120000683 吸油胶管 HG4-763-76*500 HOSE HG4-763-76*500 Y 1
14 4017000006 喉箍 JB8870-d100 ADMAS APPLE JB8870-d100 N 4
1 4120000558 动臂油缸 HSGF-160*90*812-1310 LIFTING CYLINDER HSGF-160*90*812-1310 Y 2
2 4030000026 O 形圈 GB3452.1-32.5*3.55G O-RING GB3452.1-32.5*3.55G Y 16
3 4011000473 螺栓 GB16674-M10*55EpZn-8.8 BOLT GB16674-M10*55EpZn-8.8 N 4
4 29130001021 左动臂缸小腔钢管 SMALL CHAMBER TUBE OF LEFT LIFT CYLINDER Y 1
5 29130001171 左动臂缸大腔钢管 BIG CHAMBER TUBE OF LEFT LIFT CYLINDER Y 1
6 29130001031 右动臂缸小腔钢管 SMALL CHAMBER TUBE OF RIGHT LIFT CYLINDER Y 1
7 29130001181 右动臂缸大腔钢管 BIG CHAMBER TUBE OF RIGHT LIFT CYLINDER Y 1
8 4011000475 螺栓 GB16674-M10*30EpZn-8.8 BOLT GB16674-M10*30EpZn-8.8 N 64
9 4030000029 O 形圈 GB3452.1-37.5*3.55G O-RING GB3452.1-37.5*3.55G Y 2
10 29130008152 举升下降钢管 TUBE Y 2
11 29130008181 动臂联大腔右钢管 BIG CHAMBER RIGHE TUBE OF LIFTING Y 1
12 4041000043 分体法兰 LGB117-310490 FLANGE LGB117310490 Y 12
13 29130008201 动臂联小腔右钢管 SMALL CHAMBER RIGHE TUBE OF LIFTING Y 1
14 29130011991 左支架 LEFT BRACKET Y 1
15 29130008221 动臂联大腔左钢管 BIG CHAMBER LEFT TUBE OF LIFTING Y 1
16 29130008241 动臂联小腔左钢管 SMALL CHAMBER LEFT TUBE OF LIFTING Y 1
17 29130000111 管夹 CLAMP Y 2
18 4011000458 螺栓 GB16674-M8*20EpZn-8.8 BOLT GB16674-M8*20Ep.Zn-8.8 N 4
19 4041001017 U 形螺栓 LGB159-13040 U-BOLT LGB159-13040 Y 6
20 4013000007 螺母 GB6170-M10EpZn-8 NUT GB6170-M10EpZn-8 N 12
21 4015000162 垫圈 GB97.1-10EpZn-300HV WASHER GB97.1-10EpZn-300HV N 12
22 29130012011 右支架 BRACKET Y 1
