Description

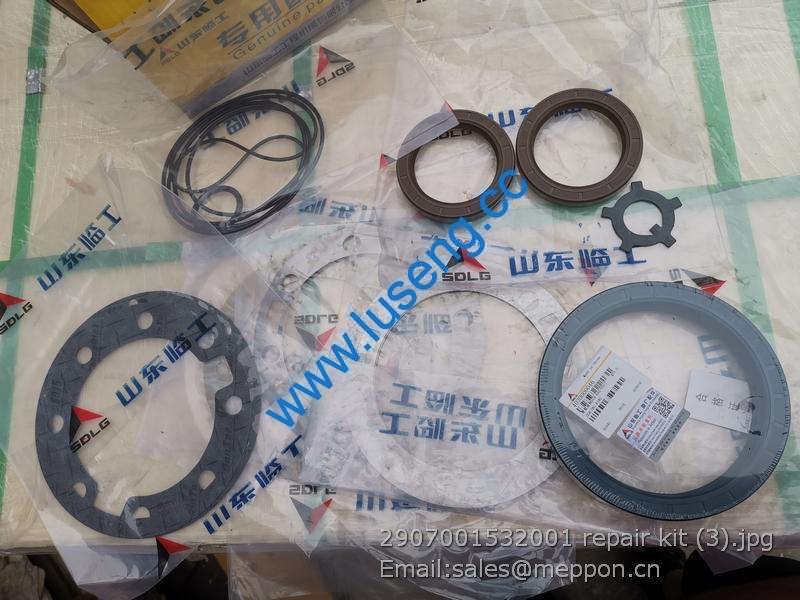

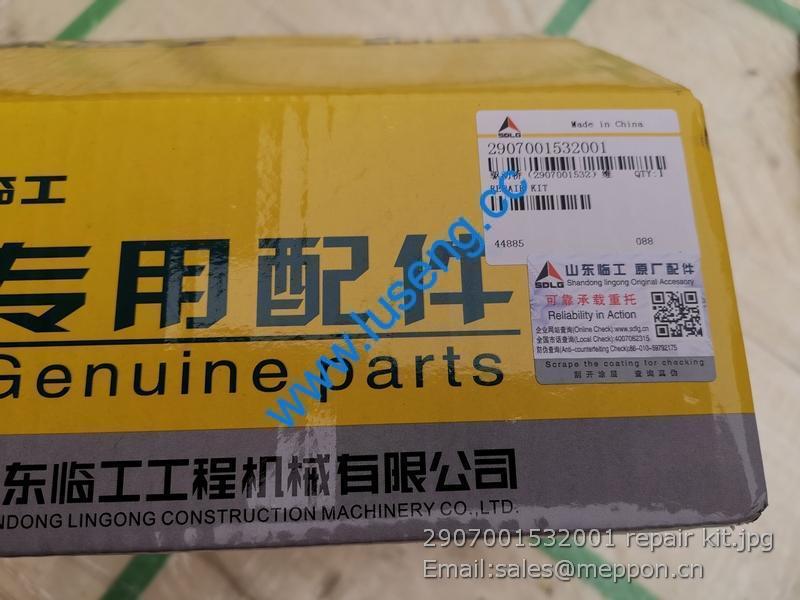

2907001532001 repair kit SDLG LG936L
1 29220001071 罐体 AIR RESERVOIR BODY Y 1
2 4120000066 791 手动放水阀 LG09-FSF 791-WATER DRAIN VALVE Y 1
3 29010000061 垫圈 WASHER Y 2
4 4120000065 安全阀 LG09-AQF SAFETY VALVE Y 1
5 4120000742 轮胎充气阀 LG09-CQF CHARGE VALVE FOR TIRE Y 1
1 4120000675074 密封件包 SEALING MEMBER AGGREGATE Y 1
2 4120000675074 密封件包 SEALING MEMBER AGGREGATE Y 1
3 4120000675074 密封件包 SEALING MEMBER AGGREGATE Y 1
4 4120000675074 密封件包 SEALING MEMBER AGGREGATE Y 1
5 4120000675074 密封件包 SEALING MEMBER AGGREGATE Y 1
1 29230001051 支架 BRACKET Y 1
2 4011000479 螺栓 GB16674-M12*30EpZn-8.8 BOLT GB16674-M12*30EpZn-8.8 N 4
3 4011000148 螺栓 GB16674-M16*40EpZn-8.8 BOLT GB16674-M16*40EpZn-8.8 N 3
4 4120000087 手制动器 TC5Z HAND BRAKE TC5Z Y 1
5 4016000145 销轴 GB882-B10*28EpZn-35 PIN GB882-B10*28EpZn-35 N 1
6 4016000183 开口销 GB91-3.2*22EpZn-Q235A PIN GB91-3.2*22EpZn-Q235A N 1
7 4011000461 螺栓 GB16674-M8*16EpZn-8.8 BOLT GB16674-M8*16EpZn-8.8 N 4
8 29230001021 固定架 FIXED FREME Y 1
9 4190000933 驻车操纵机构总成 LG23-953 PARKING BRAKE SYSTEM LG23-953 Y 1
10 4011000455 螺栓 GB16674-M8*25EpZn-8.8 BOLT GB16674-M8*25EpZn-8.8 N 4
1 4120000675075 密封件包 SEALING MEMBER AGGREGATE Y 1
2 4120000675075 密封件包 SEALING MEMBER AGGREGATE Y 1
3 4120000675075 密封件包 SEALING MEMBER AGGREGATE Y 1
4 4120000675075 密封件包 SEALING MEMBER AGGREGATE Y 1
5 4120000675075 密封件包 SEALING MEMBER AGGREGATE Y 1
6 4120000675075 密封件包 SEALING MEMBER AGGREGATE Y 1
1 29240001017 前车架 FRONT FRAME Y 1
2 4011000089 螺栓 GB5783-M12*30EpZn-8.8 BOLT GB5783-M12*30EpZn-8.8 N 34
3 4021000043 关节轴承 GB9163-GE70ES-2RS SPHERICAL PLAIN BEARING Y 2
4 29250008691 下铰接销 PIN Y 1
5 29250001031 法兰 FLANGE Y 2
6 29250001041 套 BUSH Y 1
7 29250001051 联接板 JOINING PLATE Y 2
8 4016000043 开口销 GB91-8*80EpZn-Q235A SPLIT PINGB91-8*80EpZn-Q235A N 1
9 29250008711 开槽螺母 SLOTTED NUT Y 1
10 29250001071 油孔引出管 OIL TUBE Y 2
11 4011000093 螺栓 GB5783-M16*25EpZn-8.8 BOLT GB5783-16*25EpZn-8.8 N 1
12 29250001081 上铰接销 UP ARTICULATION PIN Y 1
13 29250001351 走线胶套 RUBBER SLEEVE Y 2
14 29250008461 走线胶套 RUBBER SLEEVE Y 2
15 4015000197 垫圈 GB96.1-10EpZn-300HV WASHER GB96.1-10EpZn-300HV N 6
16 29250001101 前转向销 FRONT PIN OF STEERING CYLINDER Y 2
17 4011000197 螺栓 GB5783-M12*25EpZn-8.8 BOLT GB5783-M12*30EpZn-8.8 N 4
18 4015000026 垫圈 GB93-12-65Mn WASHER GB93-12-65Mn N 36
19 29250001111 卡板 PLATE Y 2
20 29250001141 前转向销润滑油管 TUBE OF FRONT STEERING CYLINDER N 2
21 4011000081 螺栓 GB5783-M10*20EpZn-8.8 BOLT GB5783-M10*20EpZn-8.8 N 6
22 29250008441 前盖板总成 FRONT COVER ASSEMBLY N 1
23 4043000040 垫片 LGB303-95*160*1 SPACER LGB303-95*160*1 Y 4
24 4043000017 销轴 LGB301-95*133*250G-40Cr PIN LGB301-95*133*250G-40Cr Y 1
25 4040000002 垫圈 LGB001-16 WASHER LGB001-16 Y 7
26 4011000094 螺栓 GB5783-M16*30EpZn-8.8 BOLT GB5783-M16*30EpZn-8.8 N 6
27 4030000065 油杯 JB7940.1-M10*1 GREASE NIPPLE JB7940.1-M10*1 Y 9
28 4011000560 螺栓 GB16674-M12*25EpZn-8.8 BOLT GB16674-M12*25EpZn-8.8 N 8
29 4015000186 垫圈 GB96.1-12EpZn-300HV WASHER GB96.1-12EpZn-300HV N 2
30 4043000037 垫片 LGB303-95*150*1 SPACER LGB303-95*150*1 Y 2
31 4043000038 垫片 LGB303-95*150*2 SPACER LGB303-95*150*2 Y 2
32 4043000016 销轴 LGB301-85*148*290G-40Cr PIN LGB301-85*148*290G-40Cr Y 2
33 29250001152 左前挡泥瓦 LEFT FRONT FENDER Y 1
34 29250008021 左灯架 BRACKET OF LAMP Y 1
35 29250008031 右灯架 RIGHT BRACKET OF LAMP Y 1
36 29250001182 右前挡泥瓦 RIGHT FRONT FENDER Y 1
37 4043000020 销轴 LGB301-95*149R*285G-40Cr PIN LGB301-95*149R*285-40Cr Y 2
38 4011000474 螺栓 GB16674-M10*25EpZn-8.8 BOLT GB16674-M10*25EpZn-8.8 N 6
39 29250001361 走线胶套 RUBBER SLOEVE Y 2
40 29250001121 卡板 PLATE Y 2
41 29250000291 通油螺栓 BOLT Y 2
42 29250000301 垫片 SPACER Y 4
43 29250001251 油管 TUBE Y 2
44 29250000311 管夹 CLIP Y 2
45 4015000035 垫圈 GB93-6-65Mn WASHER GB93-6-65Mn N 4
46 4014000024 螺钉 GB818-M6*10EpZn-4.8 SCREW GB818-M6*10EpZn-4.8 N 4
