Description

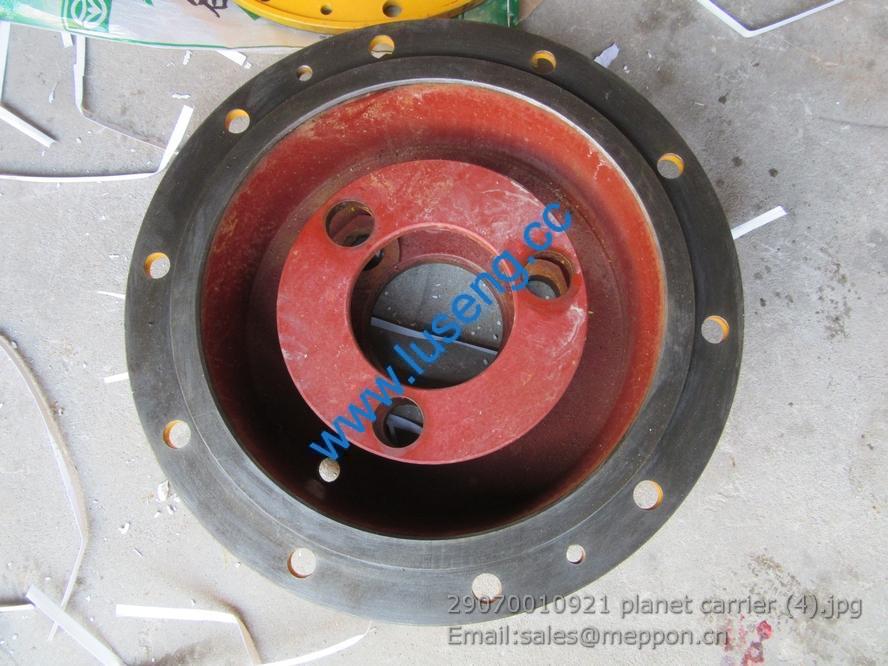

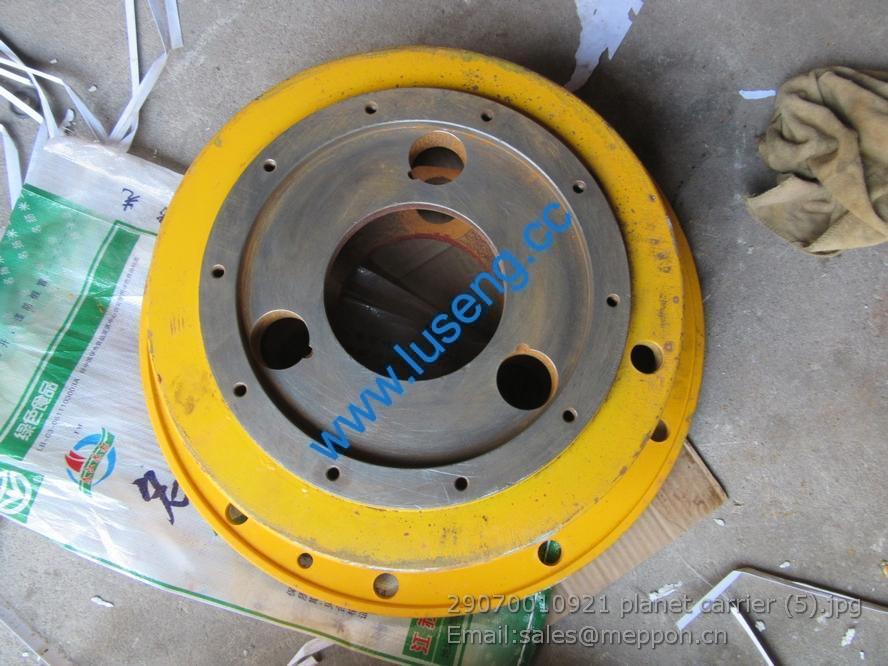

29070010921 planet carrier sdlg payloader parts

1 90011430001 4 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
2 612600112966 1 消声器 Muffl e r
3 612600061720 4 六角法兰面承面带齿螺母 Hexagon Flange Nut
4 90003802419 4 六角头螺栓 Hexagon bolt
5 90003932023 4 波形弹性垫圈 Wave spiral washer
6 612600111087 1 托架 Bracket
7 612600061719 4 六角法兰面承面带齿螺母 Hexagon Flange Nut
8 90011430017 4 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
9 612600111501 1 增压器垫片 Turbocharger washer
10 612600110466 1 膨胀管结合子组 Expansion pipe subassembly
11 615T1110071 1 垫片 Gasket

1 614150004 1 密封垫 Seal washer
2 612600150331 1 油底壳总成 Oil pan assembly
3 614150046 10 油底壳托块 Oil pan block
4 90011430019 12 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
5 612600150390 2 油底壳托块 Oil pan block

1 90003960005 1 六角头螺塞 Hexagon plug
2 90003098029 1 密封垫圈 Seal washer
3 612600150459 1 油底壳组件 Oil pan assembly
4 612600150106 1 密封垫圈 Seal washer
5 612600150251 1 磁性螺塞总成 Magnetic screw plug assembly

1 612600012771 1 发动机前支架 Front bracket of engine

1 90003871344 6 1型六角螺母 Hexagon nut (I)
2 90003931142 6 弹簧垫圈 Spring washer
3 90011270025 6 六角头螺栓 全螺纹
4 615T1020046 7 飞轮螺栓 Flywheel bolt
5 90003901453 1 圆柱销 Straight pin
6 90003901604 2 圆柱销 Straight pin
7 615T2110005 2 冷却液连接胶管 Coolant Connecting Rubber Pipe
8 90003989306 4 软管卡箍 Hose clip
9 612600090347 1 O型密封圈 O shaped seal washer
10 612600010817 1 后油封 Rear oil seal
11 612600110995 1 引射管 Induction pipe

1 612600090828 1 起动机 Starter
2 612600112230 1 排气尾管总成 Exhaust tail pipe assembly
3 612600113864 1 一级空气粗滤器 First Coarse Air Filter

1 612600090828 1 起动机 Starter
2 615T2110600 1 排气管 Exhaust manifold
3 612600113864 1 一级空气粗滤器 First Coarse Air Filter
