Description

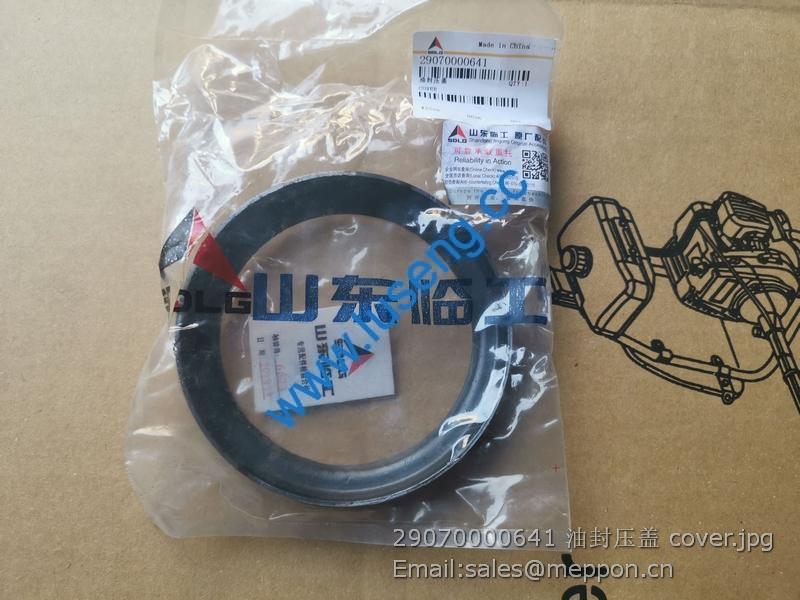

29070000641 SDLG cover
1 4021000013 滚动轴承 GB276-6016 BALL BEARING GB276-6016 Y 1
2 3030900110 旋转油封 SEAL Y 1
3 3030900178 输入二级齿轮 2nd STAGE INPUT Y 1
4 3030900111 旋转油封 SEAL Y 1
5 4021000040 滚动轴承 GB301-51111 THRUST BALL BEARING GB301-51111 Y 1
6 3030900177 输入一级齿轮 1ST STAGE GEAR INPUT Y 1
7 4021000023 滚动轴承 GB276-6311 BEARING GB276-6311 Y 1
1 7200000462 二轴总成 AXIS ASSEMBLY Y 1
2 3030900168 间隔套 ISOLATED BUSHING Y 1
3 4015000017 挡圈 GB893.1-90-65Mn RING SNAP GB893.1-90-65Mn N 1
4 4021000011 滚动轴承 GB276-6010 BALL BEARIN GB276-6010 Y 2
5 3030900139 倒档活塞 PISTION Y 1
6 3030900143 外密封环 EXTERNAL SEAL RING Y 2
7 3030900163 内密封环 INTERNAI SEAL RING Y 1
8 3030900170 螺栓 BOLT M8*14 Y 4
9 4015000036 垫圈 GB93-8-65Mn WASHER GB93-8-65Mn N 4
10 3030900160 倒档行星轴 REVERSE PLANET SPINDLE Y 4
11 3030900162 止动垫圈 STOP WASHER Y 4
12 3030900147 垫片 SPACER Y 16
13 3030900148 行星轮 PLANET Y 8
14 3030900154 挡圈 RIONG SNAP Y 16
15 4090000001 滚针 GB309-4*35-GCr15 ROLLER GB309-4*35-GCr15 Y 176
16 3030900171 倒档行星架 CARRIER OF REVERSE ASS’Y Y 1
17 3030900140 倒档一档从动片 REVERSE FIRST SPEED DRIVEN DISK Y 8
18 2030900028 倒档一档主动片 REVERSE FIRST SPEED DRIVE DISK Y 8
19 3030900141 弹簧 SPRING Y 15
20 3030900176 销 PIN Y 8
21 3030900161 圆柱销 ROUND PIN Y 1
22 2030900029 摩擦片隔离架总成 ISOLATED BRACKET Y 1
23 3030900142 弹簧销轴 SPRING PIN Y 15
24 3030900158 倒档内齿圈 REVERSE RANGE GEAR-RING Y 1
25 3030900156 挡圈 RIONG SNAP Y 1
26 3030900149 一档行星轴 FIRST SPEED PLANET SPINDLE Y 4
27 3030900151 一档行星架 CARRIER OF THE FIRST RANGE PLANET GEAR Y 1
28 3030900150 止动盘 LOCK PLATE Y 1
29 3030900153 太阳轮 GEAR-SUN Y 1
30 4021000019 滚动轴承 GB276-6210N BEARING GB276-6210N Y 1
31 4015000024 挡圈 GB894.1-90-65Mn RETAINNER RING GB894.1-90-65Mn N 1
32 3030900152 直接档连接盘 CONNECTING DISH FOR THE DIRECT RANGE Y 1
33 4015000026 垫圈 GB93-12-65Mn WASHER GB93-12-65Mn N 4
34 4011000125 螺栓 GB5786-M12*1.25*35EpZn-8.8 BOLT GB5786-M12*1.25*35EpZn-8.8 N 4
35 3030900172 内齿圈
INTERNAL GEAR-RING ASSEMBLY FOR FIRST
RANGE
Y 1
36 3030900144 一档活塞 FIRST RANGE PISTION Y 1
37 3030900113 密封环 SEALING RING Y 1
38 3030900159 固定板 MOUNTING PLATE Y 1
39 3030900145 一档油缸 CYLINDER-HOUSING FOR THE FIRST RANGE Y 1
40 3030900146 矩形密封圈 SQUARE SEAL Y 1
41 7200000115 倒档行星架总成 REVERSING PLANET CARRIER ASSENBLY Y 1
42 7200000114 一挡行星架总成 ONE STEP PLANET CARRIER ASSENBLY Y 1
1 4021000015 滚动轴承 GB276-6022 BALL BEARING GB276-6022 Y 1
2 3030900112 销 PIN Y 6
3 3030900103 直接档受压盘 BACK DISK FOR THE SECOND SPEED Y 1
4 4013000162 螺母 GB6170-M8-8 NUT GB6170-M8-8 N 12
5 4015000036 垫圈 GB93-8-65Mn WASHER GB93-8-65Mn N 12
6 2030900020 直接档主动片 DRIVE DISK ASS’Y FOR THE SECOND SPEED Y 2
7 3030900104 直接档轴 SHAFT FOR THE SECOND SPEED Y 1
8 3030900106 直接档从动片 DRIVEN DISK FOR THE SECOND SPEED Y 1
9 4011000105 螺栓 GB5783-M8*20EpZn-8.8 BOLT GB5783-M8*20EpZn-8.8 N 12
10 4021000016 滚动轴承 GB276-6204 BALL BEARING GB276-6204 Y 1
11 4015000023 挡圈 GB894.1-65-65Mn RIONG SNAP GB894.1-65-65Mn N 1
12 3030900114 碟形弹簧 DISH SPRING Y 1
13 3030900107 直接档活塞 PISTION Y 1
14 3030900113 密封环 SEALING RING Y 1
15 3030900115 销 PIN Y 3
16 3030900109 直接档油缸 CYLINDER ASS’Y FOR THE SECOND SPEED Y 1
17 29050016321 中间输出齿轮 OUTPUT GEAR OF THE INTER-SHAFT Y 1
18 4021000024 滚动轴承 GB276-6312 BALL BEARING GB276-6312 Y 1
19 3030900111 旋转油封 SEAL Y 1
20 4090000011 低碳钢丝 GB343-1.6*200-SZ STEEL WIRE GB343-1.2*1200-SZ Y 1
21 3030900105 螺栓 BOLT M12X1.25X100 Y 12
22 4015000026 垫圈 GB93-12-65Mn WASHER GB93-12-65Mn N 12
