Description

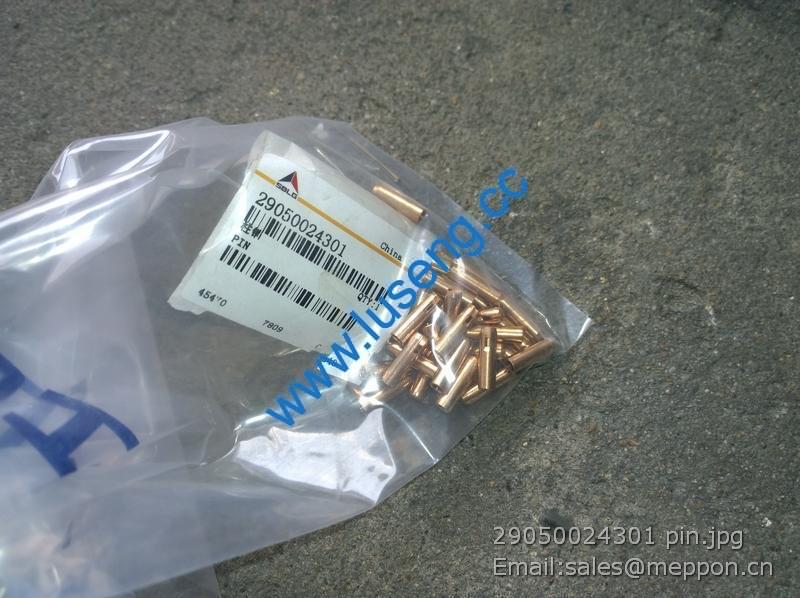

29050024301 pin SDLG

1 4021000020 滚动轴承GB276-6211 Ball bearing Y 1
2 4013000036 螺母GB6171-M10*1EpZn-8 Nut Y 20
3 4015000025 垫圈GB93-10-65Mn Spring washer Y 20
4 29050019581 中间输入轴 Input shaft Y 1
5 4021000055 滚动轴承GB276-6010E Ball bearing Y 1
6 4015000015 挡圈GB893.1-80-65Mn Retaining ring Y 1
7 29050019561 隔离套 Sleeve N 1
8 29050019491 挡环 Retaining ring N 1
9 29050019501 内环凸轮 Cam N 1
10 29050019601 内环凸轮 Nner race cam N 1
11 29050024291 弹簧 Spring Y 40
12 29050024301 柱销 Pin Y 40
13 29050019541 滚柱Φ15*32 Roller Y 20
14 29050019511 挡板 Plate N 1
15 29050019481 螺栓 Screw N 20
16 29050019571 外环齿轮 Gear N 1
17 4021000057 滚动轴承GB276-6210E Ball bearing Y 2
18 29050019551 间隔环 Spacer ring N 1

1 3030900177 输入一级齿轮 Drive shaft gear Y 1
2 3030900178 输入二级齿轮 Drive shaft gear Y 1
3 3030900110 旋转油封 Sealing ring Y 1
4 3030900111 旋转油封 Sealing ring Y 1
5 4021000023 滚动轴承GB276-6311 Ball bearing Y 1
6 4021000013 滚动轴承GB276-6016 Ball bearing Y 1
7 4021000040 滚动轴承GB301-51111 Ball bearing Y 1
8 29050018221 调整垫片 Shim Y 1
9 29050018231 调整垫片 Shim Y 1
10 29050018241 调整垫片 Shim Y 1

1 4110000659 变速操纵机构LG956L Control mechanism Y 1
2 4110000660 变速连杆机构LG956L Control mechanism Y 1
3 4011000137 螺栓GB16674-M12*20EpZn-8.8 Bolt Y 2
4 4016000143 销轴GB882-B8*26EpZn-35 Clevis pin Y 1
5 4015000072 垫圈GB97.1-8EpZn-300HV Washer Y 3
6 4016000183 开口销GB91-3.2*22EpZn-Q235A Split pin Y 1
7 29060009291 感应块 Block Y 1
8 4013000033 螺母GB6170-M8EpZn-8 Nut Y 1
9 29060009281 支架 Bracket Y 1
10 4011000102 螺栓GB5783-M8*16EpZn-8.8 Bolt Y 2
