Description

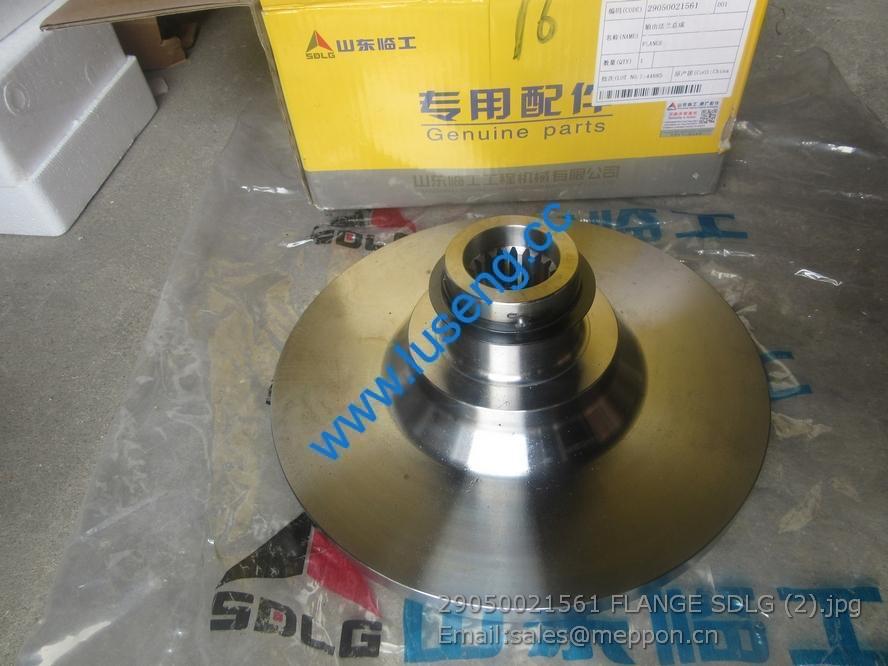

29050021561 FLANGE SDLG

1 612600114987 1 空气滤清器壳体 Air Filter Housing
2 612600110540 1 空气滤清器芯 Air Filter Element

1 612600115971 2 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
2 612600112344 1 排气管隔热罩 Heat insulating cover of exhaust pipe
3 615T1110121 1 右排气歧管 Exhaust manifold (right)
4 615T1110122 1 中间排气歧管 Middle exhaust manifold
5 61560110242 6 排气管垫片 Exhaust pipe gasket
6 61260110162 8 排气管密封环 Seal washer of exhaust pipe
7 615T1110123 1 前排气歧管 Front exhaust manifold
8 612600116160 12 排气管螺栓 Exhaust pipe bolt
9 612600110282 4 双头螺柱 Stud
10 90003888470 4 2型全金属六角锁紧螺母
Prevailing Torque Type All-metal
Hexagon Nut,

1 612601111069 1 废气涡轮增压器 Exhaust turbocharger
2 01153347 6 双头螺柱 Stud
3 90003888451 6 2型全金属六角锁紧螺母
Prevailing Torque Type All-metal
Hexagon Nut,
4 615T1110056 1 增压器垫片 Turbocharger washer

1 61260110048 1 回油管法兰垫片 Fuel return pipe fl ang e washer
2 188250083 4 自锁垫圈 Washer
3 61460070014 2 回油管螺栓 Bolt for oil return pipe
4 612600070110 1 增压器回油管组件 Oil return pipe assembly of turbocharger
5 90003989301 2 软管卡箍 Hose clip
6 612600112716 1 增压器回油软管 耐低温
Oil return hose of turbocharger(cold
resistance)
7 612600070107 1 回油弯管 Fuel return elbow
8 612600114330 1 增压器进油管 Oil inlet pipe for turbocharger
9 612600114377 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
10 612600012796 1 管夹总成 Pipe Clamp Assembly
11 612600114275 1 进油管垫片 Fuel inlet pipe gasket
12 90003862427 2 内六角圆柱头螺钉 Inner hexagon screw

1 612600113755 1 气路连接胶管 Air Connecting Rubber Pipe
2 90003989315 2 软管卡箍 Hose clip
3 90003989312 2 软管卡箍 Hose clip
4 61568C120004 1 气路连接胶管 Air Connecting Rubber Pipe
5 612600110435 1 进气弯管 Intake elbow
6 90013550001 3 内六角圆柱头螺钉 Inner hexagon screw
7 90003802432 2 六角头螺栓 Hexagon bolt
8 90003932023 6 波形弹性垫圈 Wave spiral washer
9 90003802442 1 六角头螺栓 Hexagon bolt
10 90014400010 1 密封垫圈 Seal washer
11 90003960005 1 六角头螺塞 Hexagon plug
12 615P60110007 1 垫片 Gasket
13 90003871248 1 六角螺母 Hexagon nut
