Description

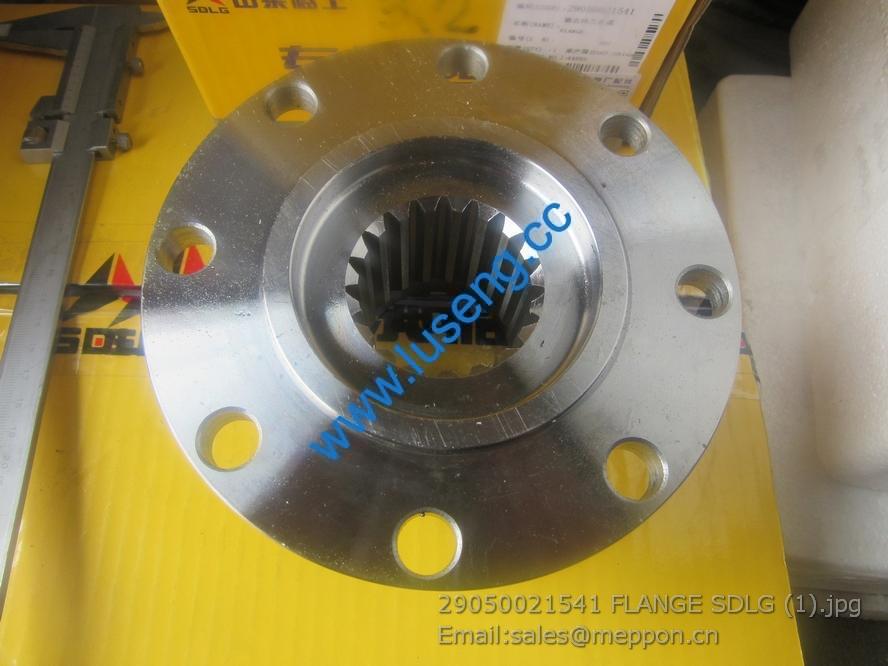

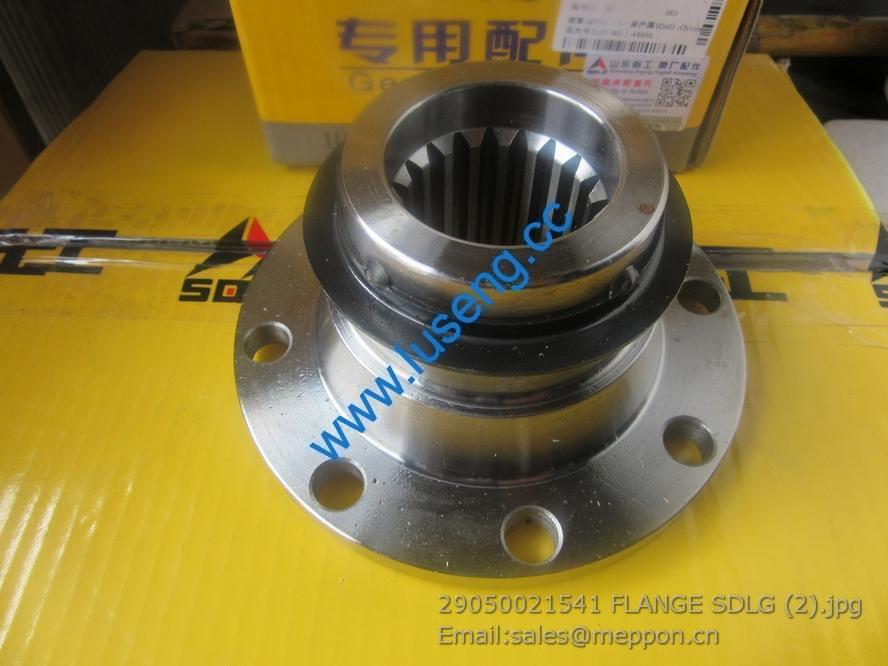

29050021541 FLANGE SDLG

1 90012630007 2 1型六角螺母 Hexagon nut (I)
2 90014330007 2 平垫圈 Flat washer
3 612600090641 1 拉紧块 Tightening block
4 612600090705 1 发电机 Generator
5 90003932016 1 波形弹性垫圈 Wave spiral washer
6 615P00090003 1 六角头螺栓 Hexagon bolt
7 90011260010 1 六角头螺栓 Hexagon bolt
8 90003932025 1 鞍形弹性垫圈 Curved Spring Washer
9 612600090292 1 压紧块 Clamp block
10 90011350073 1 六角头螺栓 Hexagon bolt
11 90003935015 2 平垫圈 Flat washer
12 13039439 1 拉紧螺栓 Tightening bolt
13 612600061722 1 六角法兰面承面带齿螺母 Hexagon Flange Nut
14 90014230005 1 波形弹性垫圈 Wave spiral washer

1 612600061720 1 六角法兰面承面带齿螺母 Hexagon Flange Nut
2 612600090640 1 发电机安装支架 Generator Bracket
3 90014230002 2 波形弹性垫圈 Wave spiral washer
4 90011270006 2 六角头螺栓 全螺纹
5 90011430025 1 六角法兰面承面带齿螺栓 Hexagon Flange Bolt

1 612600080275 1 密封垫圈 Seal washer
2 612600080802 1 密封垫圈 Seal washer
3 612600114520 1 螺纹接头 Screw joint
4 90017010001 1 方头锥型螺塞

1 612600090033 1 螺堵 Plug
2 612600111183 1 六角头螺塞 Hexagon plug
3 90014400010 1 密封垫圈 Seal washer
4 61500110024 6 进气管垫片 Air inlet pipe gasket
5 612600113444 1 进气管 Intake manifold
6 612600114467 4 六角法兰面螺栓 Hexagon Flange Bolt
7 612600114858 6 六角法兰面螺栓 Hexagon Flange Bolt
8 612600114468 2 六角法兰面螺栓 Hexagon Flange Bolt
9 90003937283 2 垫圈 Washer
10 90003802415 2 六角头螺栓 Hexagon bolt
11 90003932023 2 波形弹性垫圈 Wave spiral washer

1 612600112391 1 空气滤清器体 Air fi lte r
2 612600061720 4 六角法兰面承面带齿螺母 Hexagon Flange Nut
3 90011430001 2 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
4 612600113517 1 支架板 Bracket plate
5 90011430019 2 六角法兰面承面带齿螺栓 Hexagon Flange Bolt
