Description

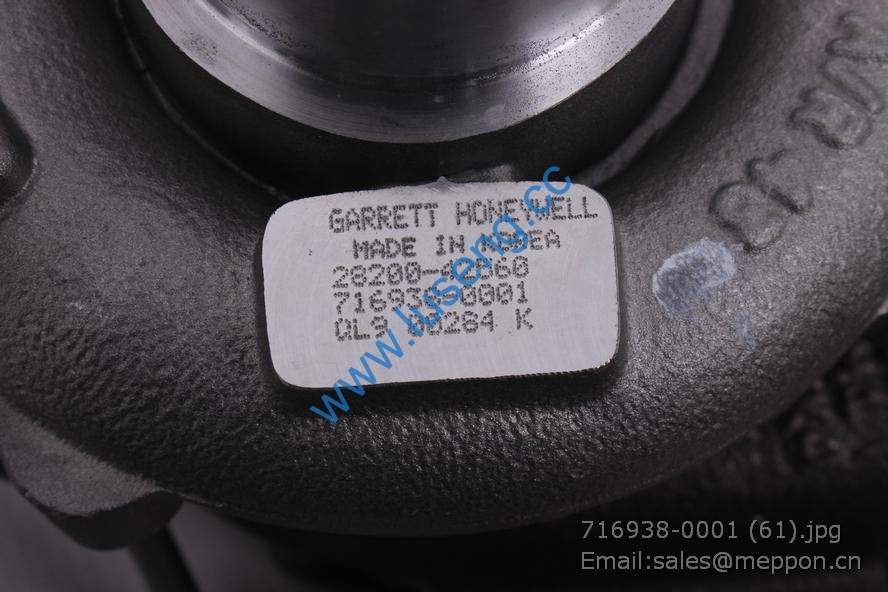

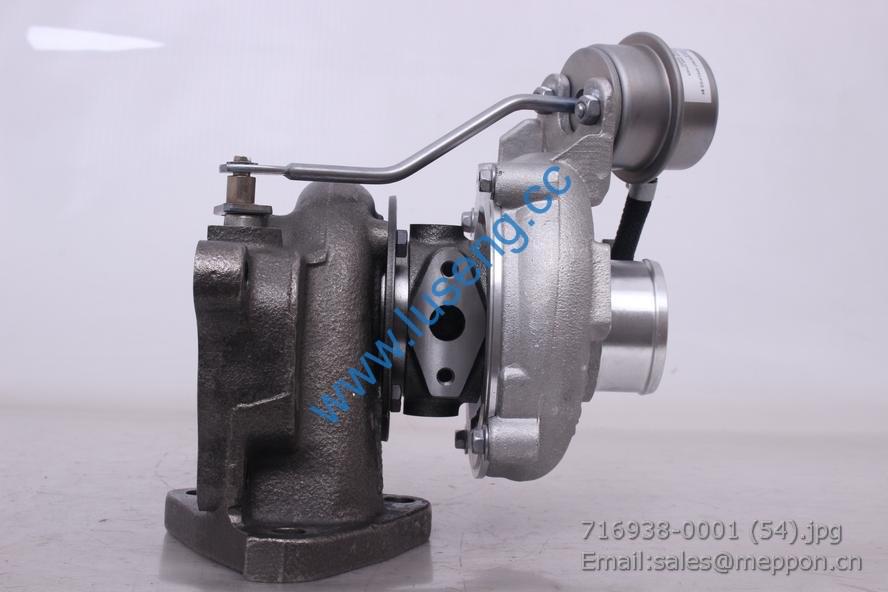

28200-42560 HYUNDAI turbocharger 716938-0001S 716938-5001S H1 | CRDi

22 HA0354 4100QB-03-017 缸盖罩螺母 Cylinder head cover nut 4
23 GB 867-1986 铆钉 Rivet 2×6 4
24 HA03304 YN33-03.03-006A 铭牌 Nameplate 1
25 495QA-03.01-006 碗形塞 Pug φ24 6

1 HA04058 YN38-04-002 第一道气环 Top Compression ring 4
2 HA04059 YN38-04-003 第二道气环 No.2 compression ring 4
3 HA04060 YN38-04.01 油环合件 Oil scraping ring seaming 4
4 HA040207 4102QBZL-04-001F 活塞 Piston 4
5 HB071 GB 893.1-1986 挡圈 Retainer ring 35 8
HA04047 4102QBZL-04.02 连杆合件 1 成套提供
6 4102QBZL-04.02-004 连杆衬套 Connecting rod bush 4
7 4102QBZL-04.02-001 连杆体 Connecting rod 4
8 4100QBZ-2-04.02-002A 连杆盖 Connecting rod cover 4
9 4100QBZ-2-04.02-003A 连杆螺栓 Connecting rod bolt 8
10 HA04035 4102QBZL-04-006 连杆轴瓦 Connecting rod liner 8
11 HA03011 YN38CRD-03302-1 活塞销 Piston pin 4

1 GB/T 5783-2000 螺栓 Bolt M10X25-8.8 10
2 GB 93-1987 垫圈 Sping washer 10 10
3 HB0621T GB/T 97.1 垫圈 Washer 10 10
4 HA05077 XH-300Y1 离合器压盘总成 Clutch cover assy φ300 1
5 HA05237 XH-300CC 从动盘总成 Driven plate assy φ300 1
6 HA0540 4102QB-05-010 飞轮紧固螺栓 Flywheel fixing bolt M12×1.25-32 6
7 HA0586 4102QB-05-009A 防松垫片 Anti-loose washer 3
8 GB/T 119.2-2000 销 Pin 10 h8×20 2
9 HA05342 4102QBZ-05-008A-JH 飞轮 Flywheel 1
10 HA05215 4102QBZ-05-007 飞轮齿圈 Gear ring of flywheel 1
11 HA05919 YN6203-Z 轴承 Bearing 6203-RZ 1
12 HA05056 4102QBZ-05-012A 垫套 Pad bush 1
13 HA05277 4102QB-05-006A 曲轴 Crankshaft 1
14 HA051 4100QB-05-001-NJ 曲轴皮带轮螺栓 Crankshaft belt pulley bolt 1
15 HA05338 4100QBZL-05.03A-KT 曲轴皮带轮 Crankshaft belt pulley 1
16 HA05172 4100QBZL-05-004 前挡油圈 Front oil retainer 1
17 HA059 4100QB-05-005A 曲轴正时齿轮 Crankshaft timing gear m=3 1
18 HB1112 GB/T 1096-2003 键 Key 10×8×60 1
19 HB09124 GB/T 119.2-2000 销 Pin 10 h8×25 1
