Description

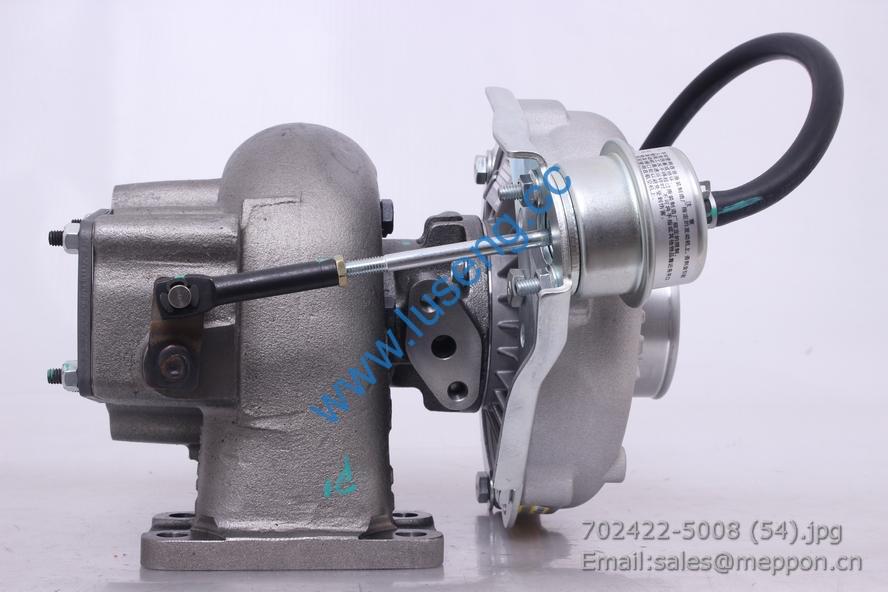

2674A059 ON HIGHWAY turbocharger 702422-5008S Highway Truck

1 530-1002204A 齿轮室盖板垫片 Gear housing cover plate gasket 1 易损件 EWP
2 Q150B0818TF2 螺栓 M8×18 Bolt M8×18 4
3 2530-1002033 齿轮室盖板 Gear housing cover plate 1
4 2530-1002032 齿轮室垫片 Gear housing gasket 1 易损件 EWP
5 530-1002028 定位销 Locating pin 1
6 2530-1002201 齿轮室 Gear housing 1
7 Q40108 垫圈 8 Lock Washer 8 8
8 Q40308 垫圈 8 Lock Washer 8 8
9 Q150B0865 螺栓 M8X65 Bolt M8X65 7
10
2530-1002039
空压机齿轮盖垫片
Gear cover washer, air
compressor
1
易损件 EWP
11
1531-1002100B
张紧轮支架焊接件
Tension pulley bracket
weldment
1

12 186-1002056A 调节螺栓 Adjusting bolt 1
13 Q40310 垫圈 10 Washer10 1
14 530-1002110A 张紧轮部件 Tension pulley parts 1
15 Q40110 垫圈 10 Washer10 15
16 Q40310 垫圈 10 Washer10 15
17 Q150B1065 螺栓 M10X65 Bolt M10X65 1
18 Q150B1075 螺栓 M10X75 Bolt M10X75 3
19 2530-1002038 空压机齿轮盖 Gear cover, air compressor 1
20 Q150B1016 螺栓 M10X16 Bolt M10X16 2
21 530-1002037 上止点指针 TDC pointer 1
22 Q150B1095 螺栓 M10X95 Bolt M10X95 2
23 Q150B1022 螺栓 M10X22 Bolt M10X22 4
24 Q150B0890 螺栓 M8X90 Bolt M8X90 1
25 Q150B1078 螺栓 M10X78 Bolt M10X78 3

26
E0209-1002110
喷油泵齿轮盖焊接件
Gear cover weldment, Injection
pump
1

27 YC209-065090FR 油封 65X90 Oil seal 65X90 1 易损件 EWP
YC209-C065090PR 油封 65X90 Oil seal 65X90 1 选装 Optional
28
2530-1002036C
喷油泵齿轮盖垫片
gear cover gasket, injection
pump
1
易损件 EWP
