Description

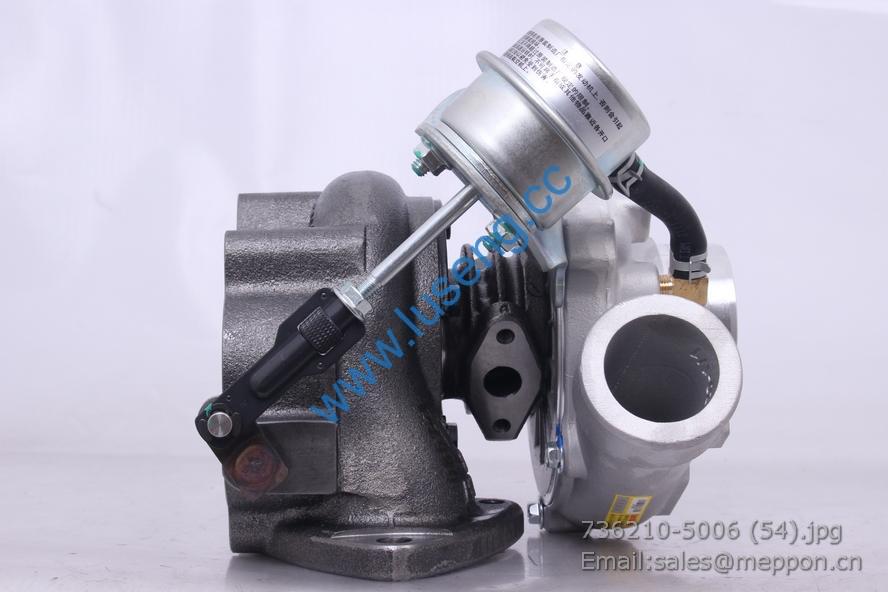

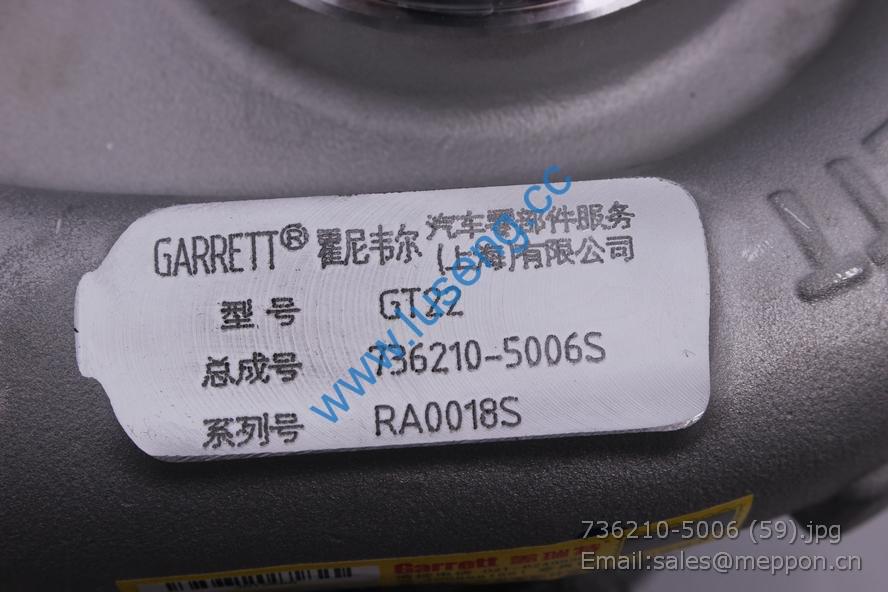

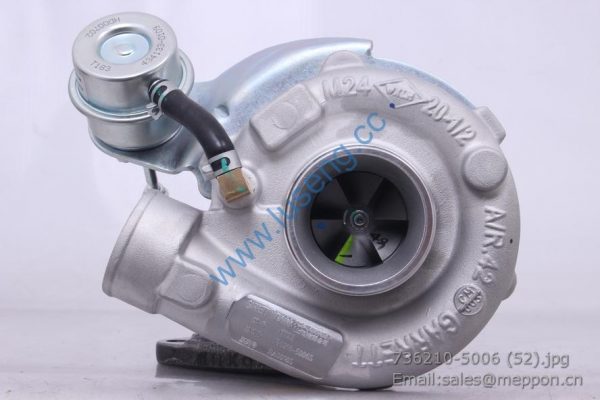

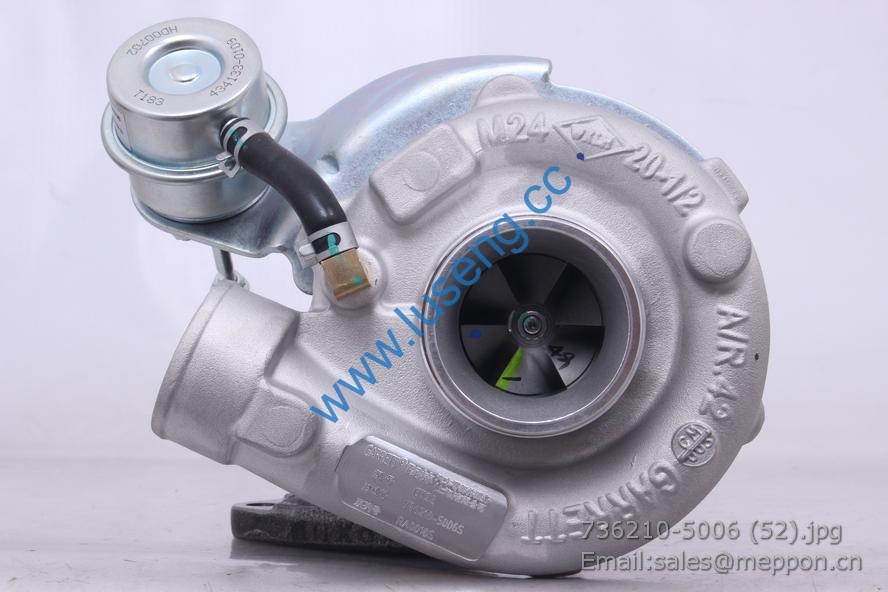

1118300TAR JIANGXI turbocharger 736210-5006S

1 HA010114L YN33CR-01-029C-L 齿轮室盖 Gear house cover 1
2 HA2307 4100QB-23.02-003 转向泵垫片 Gasket, Pump-power steering 1
3 GB/T 5783 螺栓 Bolt M8×30 9
4 GB 93-87 垫圈 Sping washer 8 9
5 GB/T 97.1 垫圈 Washer 8 9
6 HA2374L 4100QB-23.02-006-L 转向泵安装孔盖板 Steering pump cover 1
7 GB/T 5783 螺栓 Bolt M10×20 2
8 GB/T 97.1 垫圈 Washer 10 2
9 GB 93-87 垫圈 Sping washer 10 2
10 GB 898-88 螺栓 Bolt AM10×65 3
11 GB 93-87 垫圈 Sping washer 10 3
12 GB/T 97.1 垫圈 Washer 10 3
13 GB/T 6170 螺母 Nut M10 3
14 HA01012 YN33CR-01.16-HT 过轮轴承合件 Expansion pulley seaming 2
15 GB/T 5783 螺栓 Bolt M6×12 2
16 GB/T 97.1 垫圈 Washer 6 2
17 GB 93 垫圈 Sping washer 6 2
18 HA302 YFR055080.0 前油封 Front oil seal 55×80×12 1
19 GB/T 5782 螺栓 Bolt M8×55 4
20 GB/T 97.1 垫圈 Washer 8 4
21 GB 93 垫圈 Sping washer 8 4
22 HA01999L YN33CR-01-031-L 喷油泵齿轮盖板 Injection pump gear cover 1
23 HA01838 4100QB-01-030B 提前器罩壳垫片 Advancer cover washer 1

24 GB 898 螺柱 Bolt AM10×45 3
25 GB/T 97.1 垫圈 Washer 10 3
26 GB 93 垫圈 Sping washer 10 3
27 GB/T 6170 螺母 Nut M10 3
28
X0281002
315
A 265 560 939 转速传感器 DG6 Tachometer generator DG6 1
凸轮轴位置
传感器
29 GB/T 5783 螺栓 Bolt M6×12 1
30 GB 93 垫圈 Sping washer 6 1
31 GB/T 97.1 垫圈 Washer 6 1
32 GB/T 5783 螺栓 Bolt M10×25 3
33 GB 93-87 垫圈 Sping washer 10 3
34 HA0173 4100QB-01-026 齿轮室底板垫片 Washer 1
35 HA01943L YN33CR-01-027-L 齿轮室 Gear chamber 1
36 HA01501 4100QBZL-01-028 齿轮室垫片 Washer, gear chamber 1
37 GB/T119.1 销 Pin 8 m6×26 2
