Description

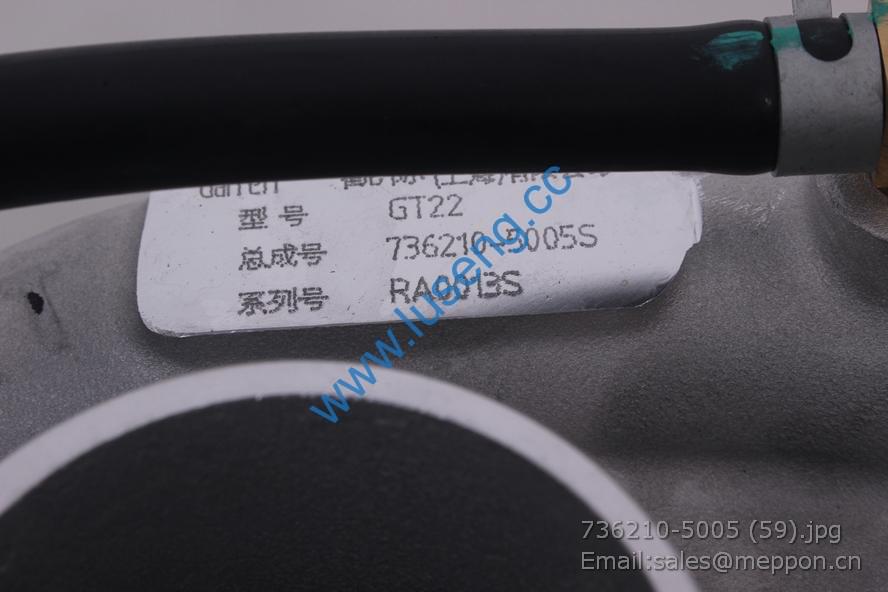

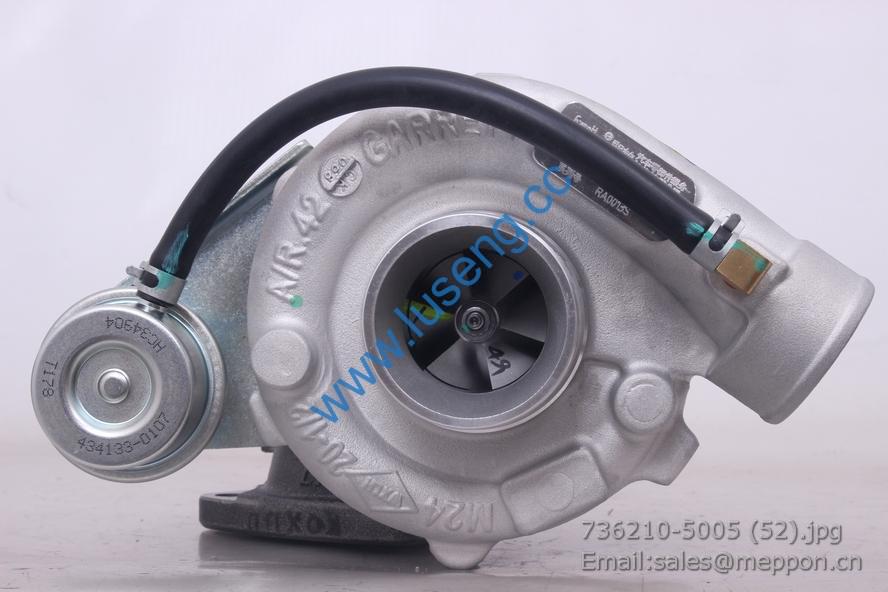

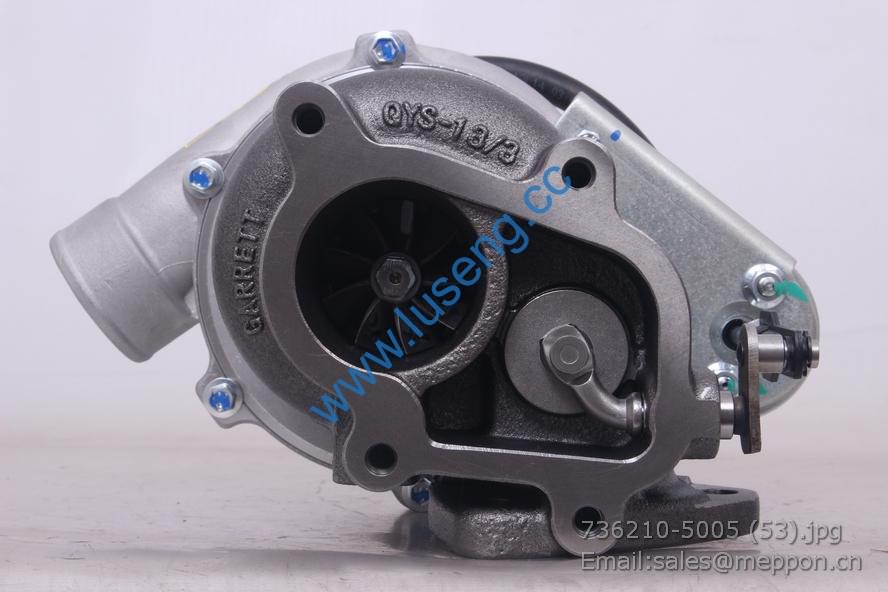

1118300SZ JIANGXI turbocharger 736210-5005S NHR Light Truck

45 HA01836 4100QB-01-024A 机油泵上轴套盖垫片 Gasket 1
46 GB/T 5783 螺栓 Bolt M8×25 2
47 GB 93 垫圈 Sping washer 8 2
48 HA015 4100QB-01-025A 机油泵上轴套盖 Cover 1
49 GB 898 螺柱 Bolt AM8×30 4
50 青岛基珀 组合垫圈 Combination washer 8 4
51 HA01370 4100QB-01-068 侧盖板螺母 Side board nut 4
52 HA01670 4102QB-01-056 前上侧盖板 Front upper side cove 1
53 JB 982 组合垫圈 Combination washer 16 1
54 HA0131 4100QB-01-065 螺塞Ⅱ Threaded plug Ⅱ M16×1.5 1
55 GB/T 5783 螺栓 Bolt M10×25-8.8 3
56 GB 93 垫圈 Sping washer 10 3
57 GB/T 97.1 垫圈 Washer 10 3
58 / / / / / 0 不带前支撑
59 HA01123 4100QB-01-019 堵塞 Jam φ7 6
60 / / / / / 0 /
61 HA01322 4100QB-01-057 上侧盖板垫片 Upper side cover washer 2
62 HA010290 YN33CR-01.07.01C 呼吸器迷宫挡板 Oil-retaining ring 1
63 HA0195 4102QB-01-008 前、后主轴承上瓦 Upper main bearing liner 2
64 HA0195 4102QB-01-009 前、后主轴承下瓦 Lower main bearing liner 2
65 HA01385 4102QB-01.01-004 后主轴承盖Ⅴ Rear main bearing cover 1
66 HA0199 4102QB-01-010 曲轴止推片 Crankshaft thrust sheet 4
67 GB/T 119.1 销 Pin 3 h8×10 2
68 HA01119 4102QB-01.01-005 主轴承盖螺栓 Main bearing cover bolt M16×120 10
69 HA01124 4100QB-01-018 堵塞 Jam φ15 1

70 HA01377 4102QB-01.01-003 中间主轴承盖Ⅱ、Ⅲ、Ⅳ Middle main bearing cover 3
71 HA0195 4102QB-01-007 中间主轴承下瓦 Bottom half,middle main bearing 3
72 HA0195 4102QB-01-006 中间主轴承上瓦 Upper half,middle main bearing 3
73 HA01985 YN33-01.14 活塞冷却喷嘴总成 Piston cooling nozzle Assy 4
74 HA01376 4102QB-01.01-002 前主轴承盖 Front main bearing cover 1

1 HA010702 YN33CR-01.07.02C 呼吸器罩盖焊合件 Breather assy 1
2 PKD-4/150 不锈钢卡箍 Clamp 16~25 2
3 HA010268 YN33CRD-01.16.01A-003 呼吸器回油管
Breather fuel intake pipe
module
1

4 GB/T 5789-1986 螺栓 8X55-8.8 级 2
5 JB/T 982-77 组合垫圈 8 2
6 HA01071 YN33CR-01.07D-001 呼吸管出气胶管 1
