Description

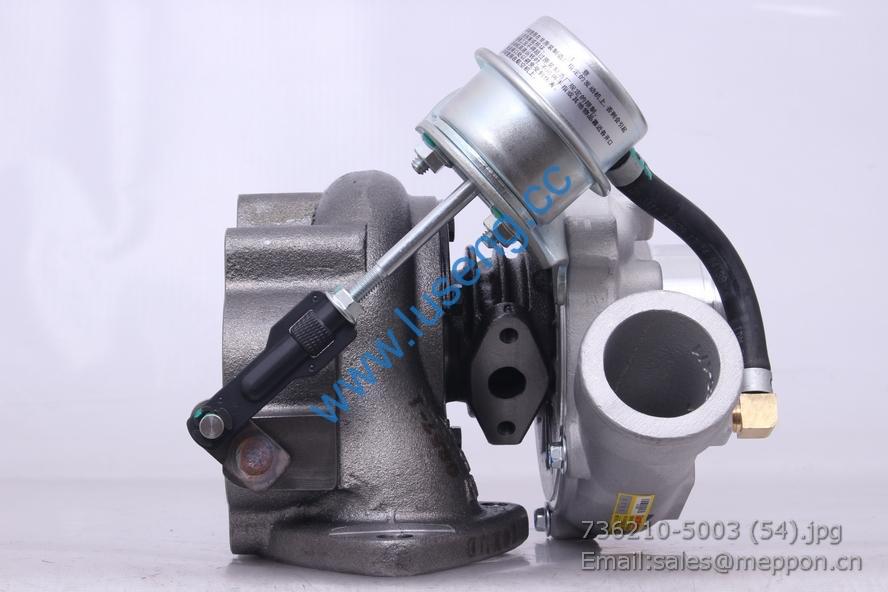

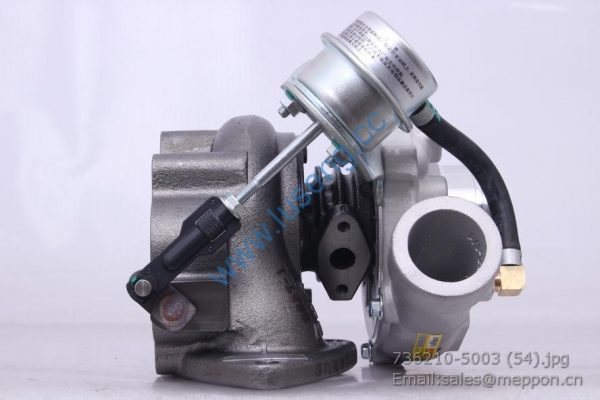

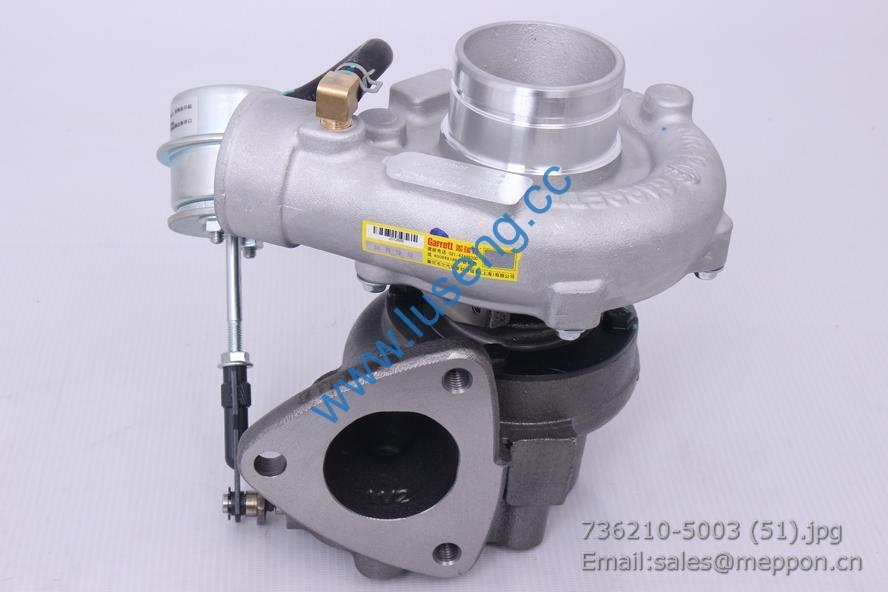

1118300SD JIANGXI turbocharger 736210-5003S

1 HA01105 4100QB-01-013A 凸轮轴衬套Ⅰ Camshaft bushing I １
2 HA010393 4100QBZ-01.02.01B 惰齿轮合件 Idle gear １
3 HA01222 4100QB-01.02-002 惰齿轮挡圈 Idle gear Baffle 1
4 GB/T 5783 螺栓 Bolt M12×22-8.8 1
5 GB 93 垫圈 Sping washer 12 1
6 4100QB-01.02.01A-002 惰齿轮衬套 Bushing, idle gear 1
7 HA0132 4100QB-01.02-001 惰齿轮轴 Shaft, idle gear 1
8 GB/T119.1 销 Pin 12 m6×26 2
9 / / / / / 0 不带前支撑
10 / / / / / 0 不带前支撑
11 / / / / / 0 不带前支撑
12 / / / / / 0 不带前支撑
13 HA01837 4100QB-01-038A 机滤连接板垫片 Gasket 1
14 HA11163 JX0810E 旋装机滤器总成 Turning-mounted oil filter assy 1
15 GB/T 5782 螺栓 Bolt M10×70 2
16 GB 93 垫圈 Sping washer 10 2

17 GB/T 97.1 垫圈 Washer 10 2
18 HA11941 4100QB-11-010 铰接螺栓 Hinge bolt M10×1 1
19 47001 组合垫圈 Combination washer 10 2
20 GB 898 螺柱 Bolt AM8×35 3
21 GB 93-87 垫圈 Sping washer 8 3
22 GB/T 97.1 垫圈 Washer 8 3

23 GB/T 6170 螺母 Nut M8 3
24 HA01238 495QA-01.01-007 碗形塞 Plug φ32 4
25
X0281002
315
A 265 560 939 曲轴转角传感器 DG6 Tachometer generator DG6 1
曲轴位置传感
器
26 GB/T 5783 螺栓 Bolt M6×12 1
27 GB 93 垫圈 Sping washer 6 1
28 GB/T 97.1 垫圈 Washer 6 1
29 HA010118L YN38CRD-01.01-G-L 机体机械加工部件 Engine block machined parts 1
30 HA013 495QA-01-022 定位套管 Locating bush 2
31 HA0171 4100QB-01-012 封水圈 Water seal ring, cylinder liner 8
32 HA010067 YN38CRD-01-011 气缸套 Cylinder liner 4
33 HA012 4100QB-01.14 喷嘴组合件 Nozzle seaming 1
34 HA01106 4100QB-01-014 凸轮轴衬套Ⅲ Camshaft bushing III 1
35 HA01009L YN33CR-01-047-AK-L 飞轮壳 Flywheel house 1
36 HA0339B DL100×125×12 油封 Oil seal 100×125×12 1
37 HA01840 4100QB-01-045A-CW 离合器壳垫片 Washer, clutch house 1
38 HA011 4100QB-01.13 堵头组合件 Plug seaming 1
39 HA0110801 4100QB-01-014-Ⅱ 凸轮轴衬套Ⅱ Camshaft bushing II 1
40 HA03125 4100QB-01-017 碗型塞 Plug φ15 2
41 GB/T119.1-2000 销 Pin 12 m6×30 2
42 HA014 495QA-01-023 机油泵传动轴衬套 Bush, oil pump driving shaft 1
43 4100QB-01.03D-011 传动齿轮轴 Propeller gear shaft 1
44 HA01192 495QA-01.03-001 调整垫片 Adjusting washer 1
