Description

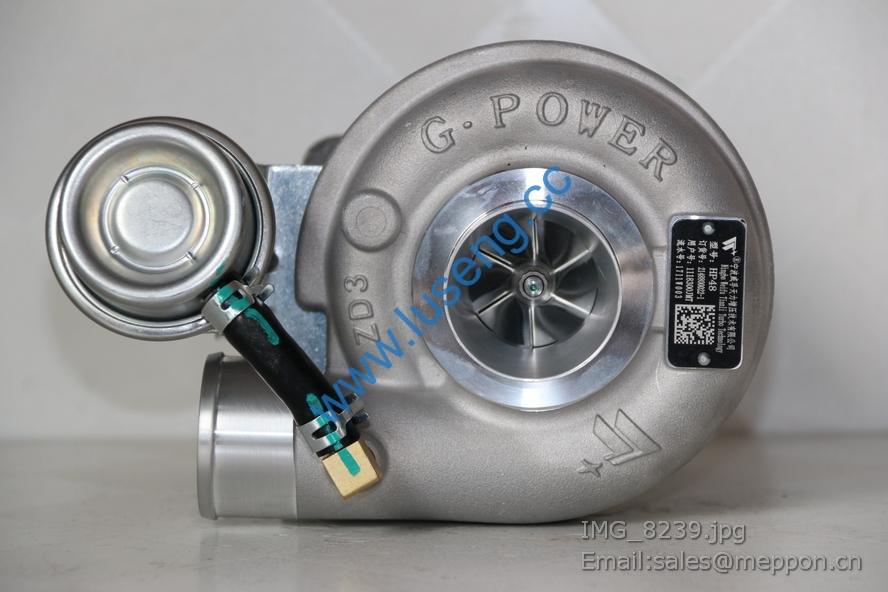

1118300JMT 2148800022-1 HP48 TURBOCHARGER JE493ZLQ4C

1
188-1115030A
断油气缸 Fuel cut-off cylinder 1
2
Q150B0635
螺栓 M6X35 Bolt M6X35 1
3 Q40006 垫圈 6 Washer 6 3
4
188-1115020
连接器 Connector 1
5
150-1115011
拉杆隔套 Pulling rod collar 1 选装 Optional
6 Q40306 垫圈 6 Washer 6 3
7
Q340B06
螺母 M6 Nut M6 2
8
Q150B0616
螺栓 M6X16 Bolt M6X16 2
9
Q40206
垫圈 6 Washer 6 2
10 188-1115012 停油气缸支架焊接件 Fuel cut-off cylinder bracket weldment 1
11
Q40310 垫圈 10
Washer 10 1
12 Q340B10 螺母 M10
Nut M10 2
13
188-1115018 停油气缸支撑螺栓
Fuel cut-off cylinder supporting bolt 1
14
Q150B1040
螺栓 M10X40 Bolt M10X40 1
15
Q340B08
螺母 M8 Nut M8 1
16
Q40308
垫圈 8 Washer 8 1
17
J4218-1115005
进气过渡接头 Air intake transition joint 1

1 A3500-1118100A-135-02 增压器 Turbocharger 1 上海 shanghai
2 M3600-1118301 垫片 Gasket 1
3 150-1118012B 增压器垫片 Turbocharger gasket 1 易损件 EWP
4 M3000-1008206B 螺母 Nut 4
5 150-1118001 双头螺柱 Threaded stud 4
6 A11L5-1118340 回油管焊接组件 Oil return pipe weldment parts 1
7 YC208-B01700F O 型圈 2.65×17 O ring 2.65×17 2 易损件 EWP
8 Q150B0832TF2 螺栓 M8X32 Bolt M8X32 2
9 Q40308 垫圈 8 Washer 8 2
10 6105Q-3509013 垫圈 Washer 2
11 A30-1118021 进油软管接头 Oil inlet hose connector 1
12 Q1840816TF2 螺栓 M8X16 Bolt M8X16 2
13 Q1840820TF2 螺栓 M8×20 Bolt M8×20 1
14 A11L5-1008212B 支架 Bracket 1
15 A11L5-1008203A 涡轮后排气接管
Turbine rear exhaust connecting
pipe
1
16 Q150B1050TF2 螺栓 M10X50 Bolt M10X50 2
17 Q40110 垫圈 10 Washer 10 2
18 Q340B10 螺母 M10 Nut M10 4
双螺母锁紧卡环 Double
nuts lock circlip
19 A30-1008024A 涡轮后卡环 Turbocharger rear snap ring 2
20 A30-1118022 垫片 Gasket 1 易损件 EWP
21 Q/YC901-1C1415 铰接螺栓 M14X1.5 Hinged Bolt M14X1.5 1
22 Q/YC149-14 复合式密封垫圈 14 Compound Seal washer14 3 易损件 EWP
23 A11L5-1118240 进油管焊接组件 Oil inlet pipe weldment 1
24 Q1840835TF2 螺栓 M8X35 Bolt M8X35 2
25 J1AL3-1118211 增压器进油接头 Turbocharger Oil inlet connector 1

1 A1116-1303041 出水管 Water outlet pipe 1
2 J4218-1306007 暖风供水接头 Warm air water supply joint 1
3 Q618B04 螺塞 NPT 1/2 Screw plug NPT 1/2 1
4 Q61903 螺塞 NPT 3/8 Screw plug NPT 3/8 1
5 6105Q-1303015 出水支管垫片 Water outlet manifold gasket 6
6 A3206-1002236 螺栓 Bolt 12
