Description

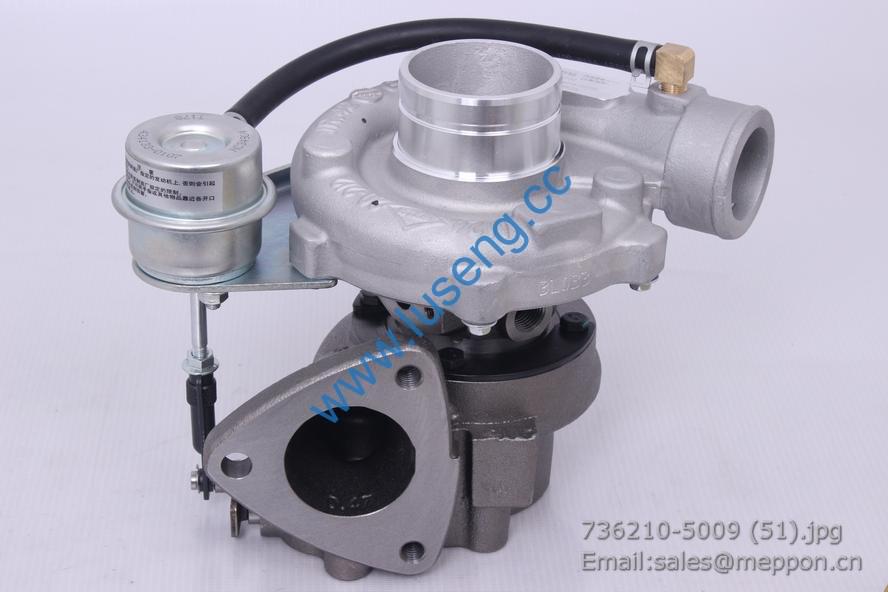

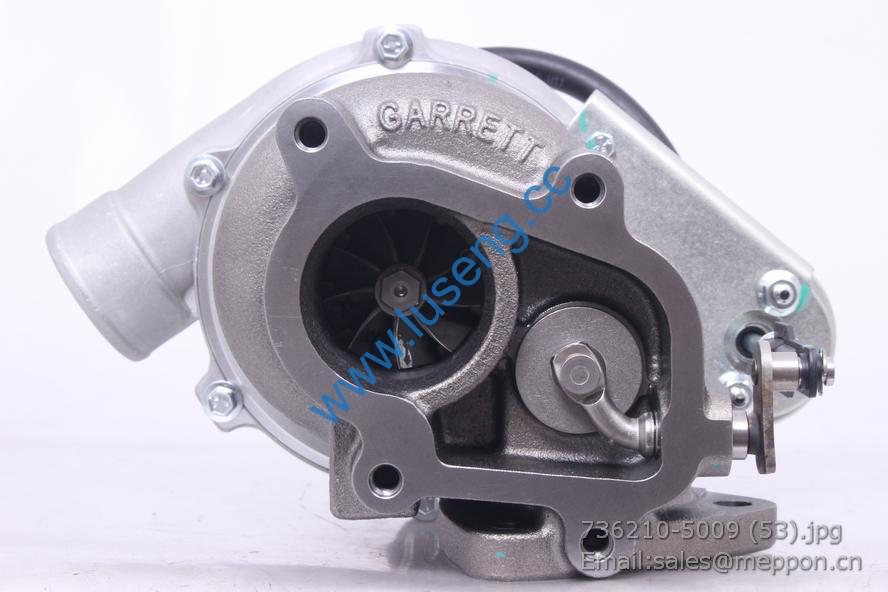

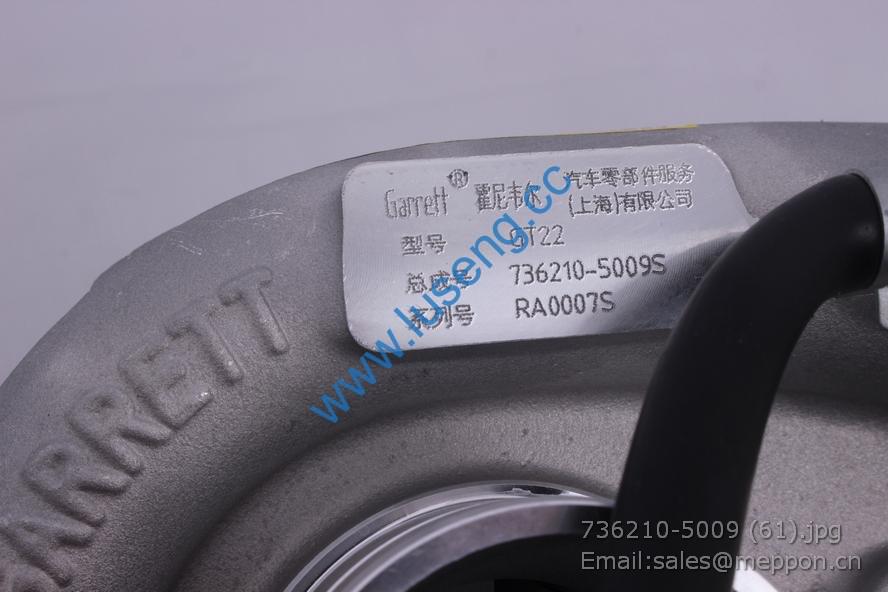

1118300DL JIANGXI turbocharger 736210-5009S JMC Light Duty Truck

1
HA04064
YN38CRD-04-002 第一道气环 Top Compression ring 4 用于 YN38CRD
2 YN38CRD-04-003 第二道气环 No.2 compression ring 4 用于 YN38CRD
3 YN38CRD-04.01 Ⅰ型钢质油环 Oil scraping ring seaming 4 用于 YN38CRD
4 HA04073 YN38CRD-04-001A 活塞 Piston 4
5 HB071 GB893.1-1986 挡圈 Retainer ring 35 8
6 4102QBZL-04.02-004 连杆衬套 Connecting rod bush 4
7
HA04047
4102QBZL-04.02-001 连杆体 Connecting rod 4
8 4100QBZ-2-04.02-002A 连杆盖 Connecting rod cover 4
9 4100QBZ-2-04.02-003A 连杆螺栓 Connecting rod bolt 8
10 HA04035 4102QBZL-04-006 连杆轴瓦 Connecting rod liner 8
11 HA03011 YN38CRD-03302-1 活塞销 Piston pin 1

1 GB/T 5783 螺栓 Bolt M10X25-8.8 10
2 GB 93 垫圈 Sping washer 10 10
3 GB/T 97.1 垫圈 Washer 10 10
4 HA05183 325Y 离合器盖总成 Clutch cover assy φ300 1
5 HA05184 325CC 从动盘总成 Driven plate assy φ300 1
6 HA05148 5100QB-05-010-CW 飞轮紧固螺栓 Flywheel fixing bolt M12×1.25-32 6
7 HA0586 4102QB-05-009A 防松垫片 Anti-loose washer 3
8 GB/T 119.2 销 Pin 10 h8×20 2
9 HA05356 YN33CR-05-008-AK 飞轮 Flywheel 1
10 HA05215 4102QBZ-05-007 飞轮齿圈 Gear ring of flywheel 1
11 HA05920 YN6205-Z 轴承 Bearing 6203-RZ 1
12 HA05274 4102QBZL-05-012 垫套 Pad bush 1
13 HA05059 4102QB-05-006C 曲轴 Crankshaft 1
14 HA051 4100QB-05-001-NJ 曲轴皮带轮螺栓 Crankshaft belt pulley bolt 1
15 HA05329 YN33CR-05-003 曲轴皮带轮 Crankshaft belt pulley 1
16 HA05172 4100QBZL-05-004 前挡油圈 Front oil retainer 1
17 HA05429 4100QB-05-005B 曲轴正时齿轮 Crankshaft timing gear m=2.5 1
18 GB/T 1096 键 Key 10×8×60 1
19 GB/T 119.2 销 Pin 10 h8×25 1
