Description

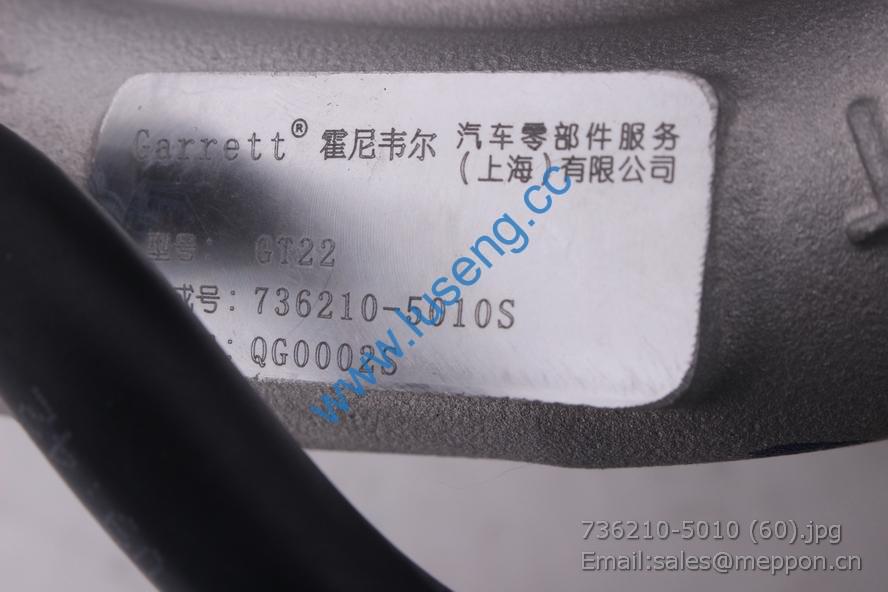

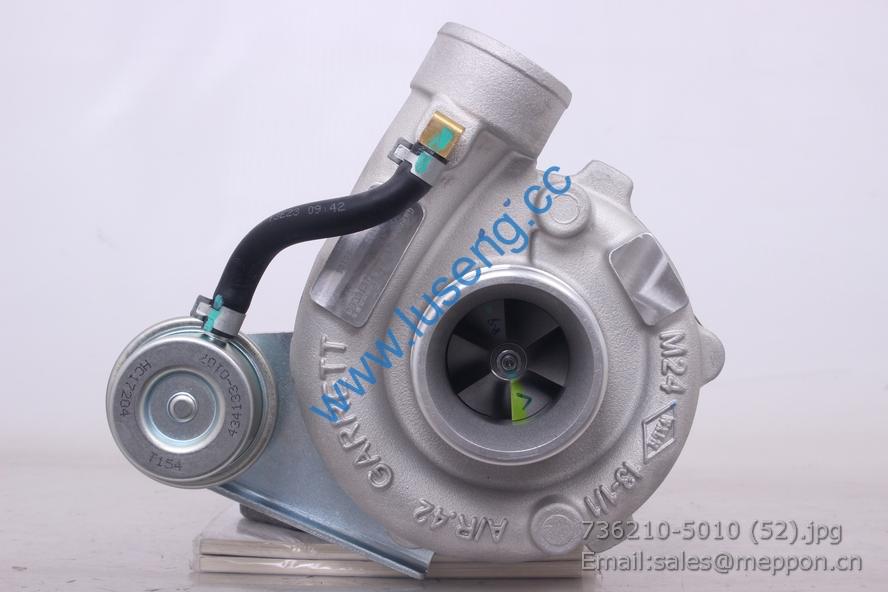

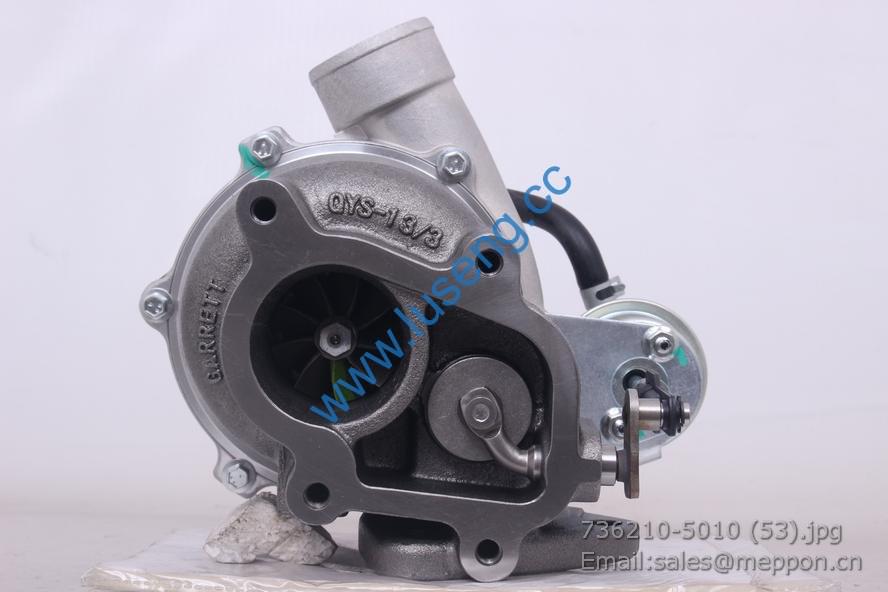

1118300AAD JIANGXI turbocharger 736210-5010S

HA01483 4102QBZ-01.03F 机油泵总成部件 Oil pump assy 1
1. 4100QB-01.03C.03 滤网焊合件 Strainer module 1
2. GB/T 5782-2000 螺栓 Bolt M8×65 4
3. GB93-1987 垫圈 Spring washer 8 4
4. 4100QB-01.03-007 集滤器壳 Strainer cover 1
5. 4100QB-01.03C-009 吸油管 Oil intake pipe 1
6. 4102QBZ-01.03A-006 机油泵体 Oil pump body 1
7. 4102QBZ-01.03F.02 主动轴合件 driving shaft 1
8. 4100QB-01.03C-005 纸垫 Gasket 2
9. 4102QBZ-01.03-003 从动齿轮轴 Helical gear with shaft 1
10. 4100QBZ-01.03-004 机油泵盖 Cover ,oil pump 1
11. 4100QB-01.03D.05 中间接杆合件 Mid-Connecting rod seaming 1
12. GB119-86 销 Pin A4×26 1
13. 4102QBZ-01.03F-002 机油泵从动齿轮 Oil pump driven gear 1
14. GB119-86 销 Pin B5×12 2
15. GB/T 91-2000 开口销 Split pin 4×35 1
16. GB/T 308-89 钢球 Steel ball 10 1
17. 2100QB-01.03A-014 弹簧 Spring 1
18. 2100QB-01.03A-015 弹簧座 Spring seat 1
19. 2100QB-01.03A-016 调整垫片 Adjusting shim 1
20. 4100QB-01.03-008A 纸垫 Gasket 2
21. HA0137A01 4100QBZ-01.03.04A 机油泵出油管焊合件 Oil outlet pipe assy 1
22. GB/T 5783-2000 螺栓 Bolt M8×20 4

1 HA01243 4100QB-01.06D.01-009 加强板Ⅱ Reinforced plate II 1
2 HA01244 4100QB-01.06D.01-010 加强板Ⅲ Reinforced plate III 1
3 GB/T 5783 螺栓 Bolt M8×20 12
4 GB/T 6170 螺母 Nut M8 17
5 GB 93 垫圈 Sping washer 8 29
6 GB/T 97.1 垫圈 Washer 8 29
7 GB 898 螺柱 Bolt AM8×20 17
8 HA0140 4100QB-1A-01.06-001 放油螺塞 Oil drain plug 1
9 JB 982 A 型组合垫圈 Combination washer 18 1
10 HA01242 4100QB-01.06D.01-008 加强板Ⅰ Reinforced plate I 2
11 HA011118 YN33CRD-1A-01.06.01 油底壳焊合件 Welded oil sump seaming 1
12 HA0189 4100QB-01-054A 油底壳垫片 Oil sump washer 1
13 HA01494 4100QB-01.06.03A-FT 油尺套管焊接件 Welded oil dipstick sleeve 1
14 GB/T 5783 螺栓 Bolt M6×16 1
15 HA01495 4100QBZL-01.06-004-FT 支承板 Support board 1
16 GB/T97.1 垫圈 Washer 6 1
17 GB 93 垫圈 Sping washer 6 1
18 GB/T6170 螺母 Nut M6 1
19 HA010121 4100QBZL-01.06.02B 油标尺合件 Oil dipstick assy 1
