Description

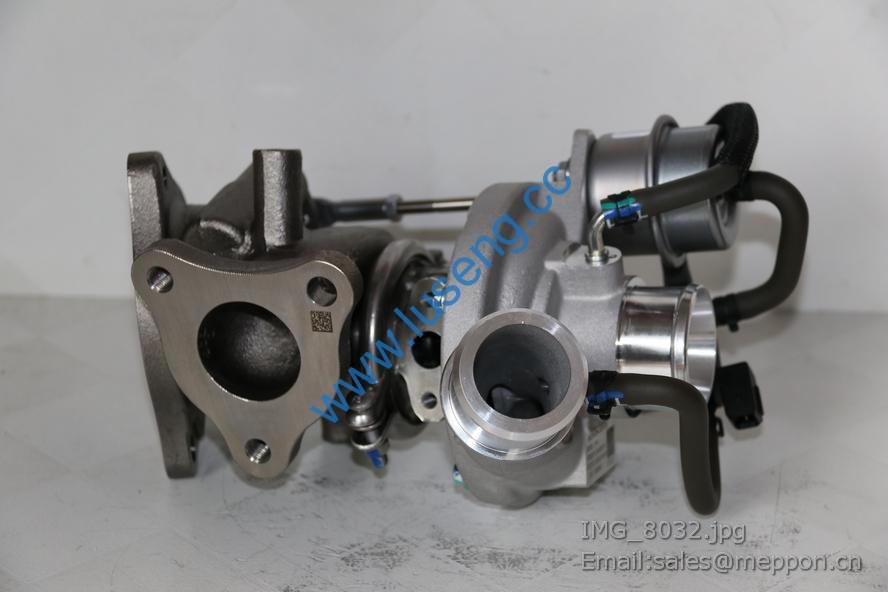

1118100F00-00B JP44 1344910001-01 turbocharger

1 A1116-1308150 风扇组件 Fan subassembly 1
2 M36B1-1308200 风扇减振器部件 Fan damper part 1
3 A3206-1308300C 风扇轴部件 Fan shaft part 1
4 Q1841035TF2 螺栓 M10X35 Bolt M10X35 3
5 Q1841225TF2 螺栓 M12X25 Bolt M12X25 4
6 Q1841020TF2 螺栓 M10X20 Bolt M10X20 4

1 A3206-1600401A 飞轮壳 Flywheel housing 1
2 Q1841235TF2 螺栓 M12X35 Bolt M12X35 2
3 YC24-B1224 圆柱销 12X24 Cylindrical pin 12X24 1
4 Q1841245TF2 螺栓 M12X45 Bolt M12X45 6
5 YC209-122141FL 油封 122X141 Oil seal 122X141 1 选装 Optional
YC209-B122141PL 油封 122X141 Oil seal 122X141 1 选装 Optional
6 A3206-1005360A 飞轮及齿圈组件 Flywheel and hub assembly 1
7 Q40310 垫圈 10 Washer 10 24
8 Q150B1070TF2 螺栓 M10X70 Bolt M10X70 10
9 6QA1-1005044A 飞轮螺栓 Flywheel bolt 8
10 397A-1005011 轴承衬垫 Bearing bushing 1
11 GB/T276-6205-2RS 深沟球轴承 Ball bearing 1
12 Q340B10 螺母 M10 Nut M10 14
13 Q1201070TF2 螺柱 M10X70 Stud M10X70 2
14 6105Q-1600011 扁销 Flat pin 1
15 Q1841445TF2 螺栓 M14X45 Bolt M14X45 2
16 Q1201030TF2 螺柱 M10X30 Stud M10X30 12
17 A3016-1600402 盖板 Cover plate 1
18 A3016-1600412 垫圈 Washer 4
19 Q1840618 螺栓 M6X18 Bolt M6X18 4
20 B3000-1600021 盖板 Cover plate 1

1 L38DB-3407002 传动套 Driving sleeve 1
2 YC9-052 塑料堵盖 52 Plastic plug 52 1

1 L3001-3509010B 空气压缩机 Air compressor 1
2 6QA6-1307017 管接螺栓 Pipe connecting bolt 4
3 Q/YC149-14 复合式密封垫圈 14 Compound Seal washer 14 8 易损件 EWP
4 A3000-3509024 空压机出水管 Air compressor water return pipe 1
5 A440B-3509060 空压机进气接头组件 Air compressor intake joint parts 1
6 G4606-3509014 密封垫片 Seal gasket 1
7 A3206-3509005A 空压机进水管 Air compressor water inlet pipe 1
8 L3CL5-3509001 空压机齿轮 Air compressor gear 1
9 Q1841070 螺栓 M10X70 Bolt M10X70 2
10 L3001-3509009B 空压机垫片 Air compressor gasket 1 易损件 EWP
11 M3000-1002701A 过油螺栓 Oil hollow bolt 3
12 A3206-3509004 空压机进油管组件 Air compressor oil inlet pipe parts 1
13 Q/YC149-10 复合式密封垫圈 10 Compound Seal washer 10 6 易损件 EWP
