Description

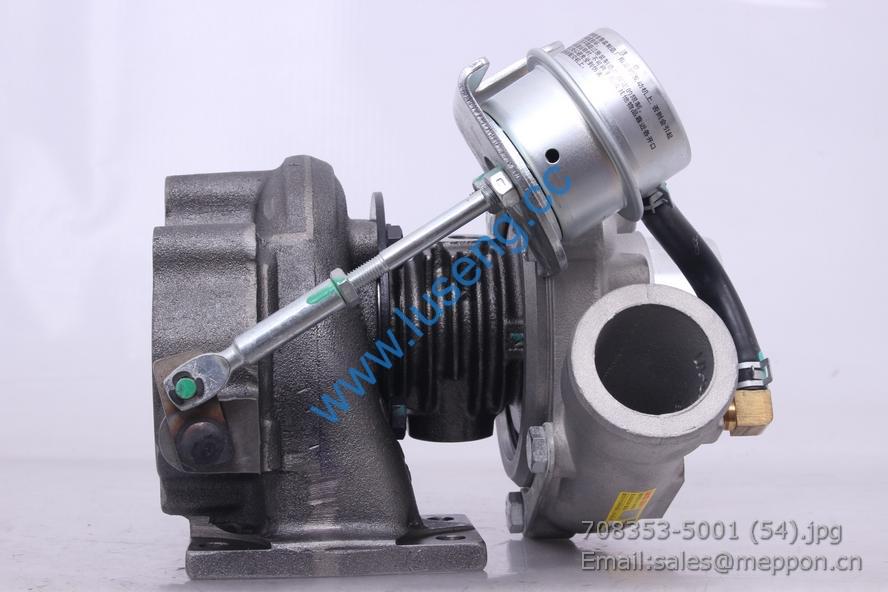

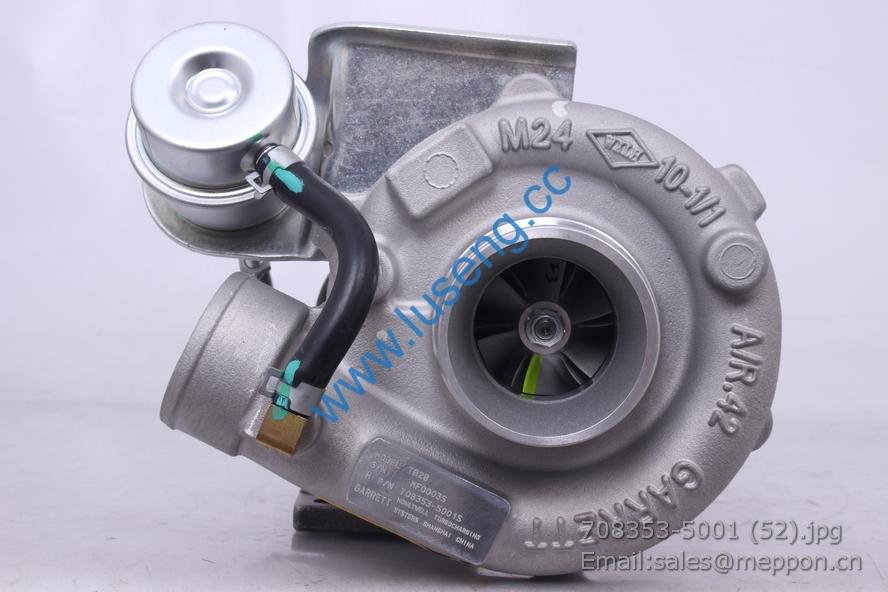

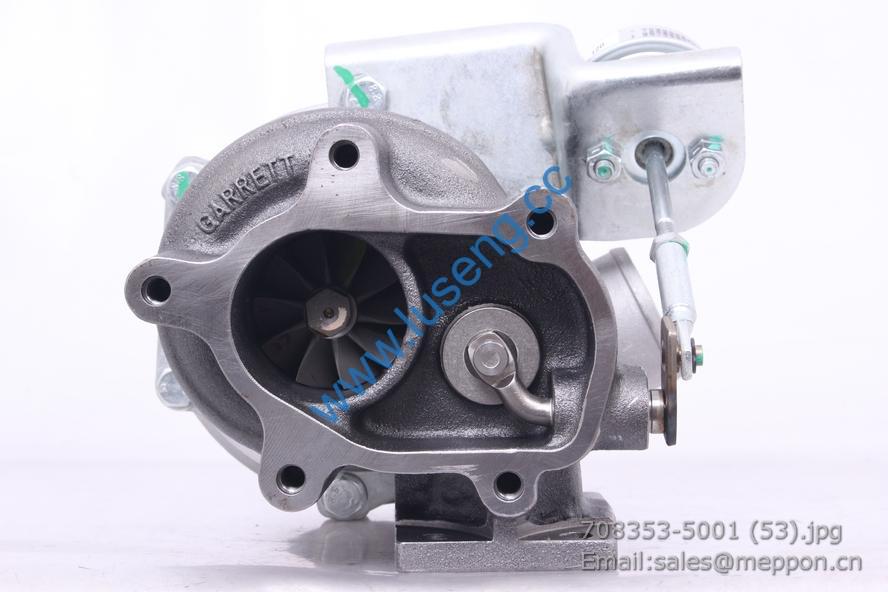

1118010X3 FAW turbocharger 708353-5001S

1 150-1008250 排气管垫片组件 Exhaust pipe gasket component 4
2 1575-1008226 螺栓套 Bolt sleeve 8
3 Q1841065TF2 螺栓 M10X65 Bolt M10X65 8
4 E0801-1008204A 排气管 Exhaust pipe 1

1 530-1009011A 油底壳垫片 Oil sump gasket 1 易损件 EWP
2 E05FA-1009040A 油底壳组件 Oil Sump Assembly 1
3 530-1009002 垫圈 Washer 26
4 Q1841020 螺栓 M10X20 Bolt M10X20 26
5 Q/YC149-27 复合式密封垫圈 27 Compound seal washer 27 1 易损件 EWP
6 6105Q-1009032A 放油塞磁铁 Oil drain plug magnet 1
7 6105Q-1009031C 放油塞 Oil drain plug 1

1 530-1010050C 垫片组合件 Gasket component 1
2 530-1010010E 吸油管焊接件 Oil suction pipe weldment 1
3 Q40310 垫圈 10 Washer10 1
4 Q150B1022TF2 螺栓 M10X22 Bolt M10X22 1
5 530-1010030 滤网组件 Screen parts 1 易损件 EWP
6 Q40308 垫圈 8 Washer 8 2
7 Q150B0850F2 螺栓 M8X50 Bolt M8X50 2
