Description

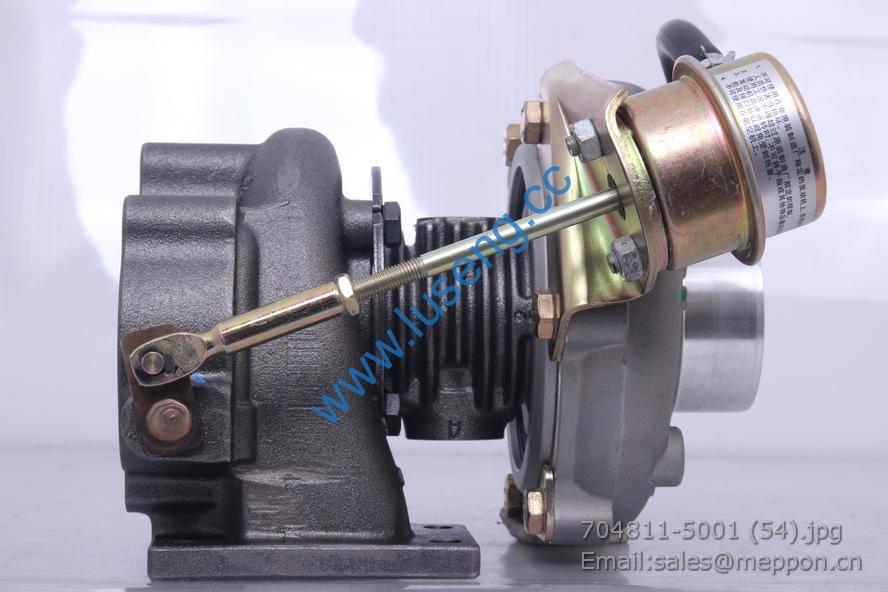

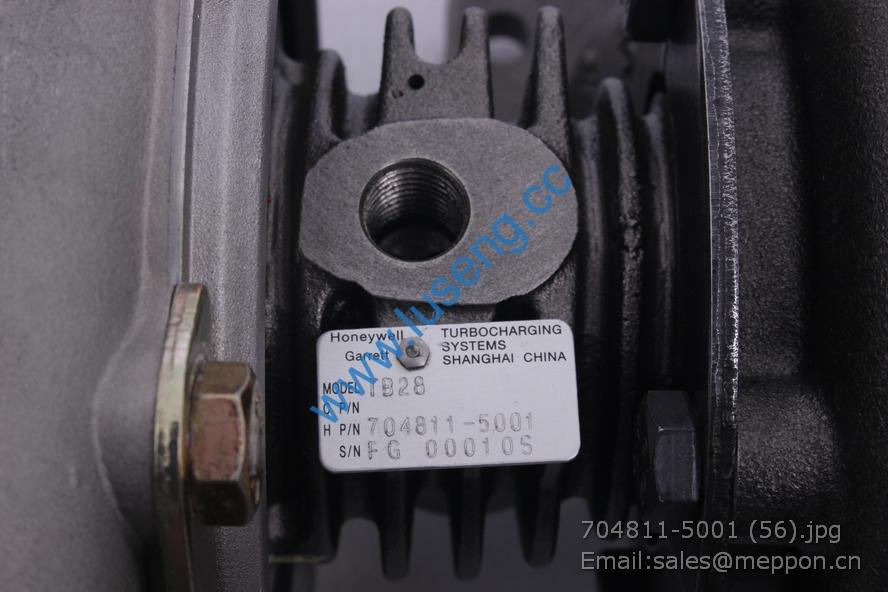

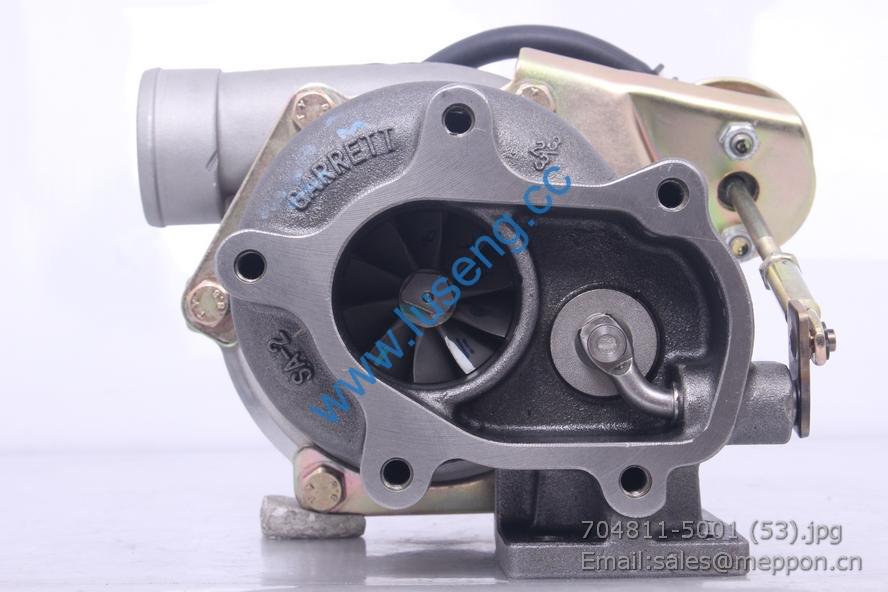

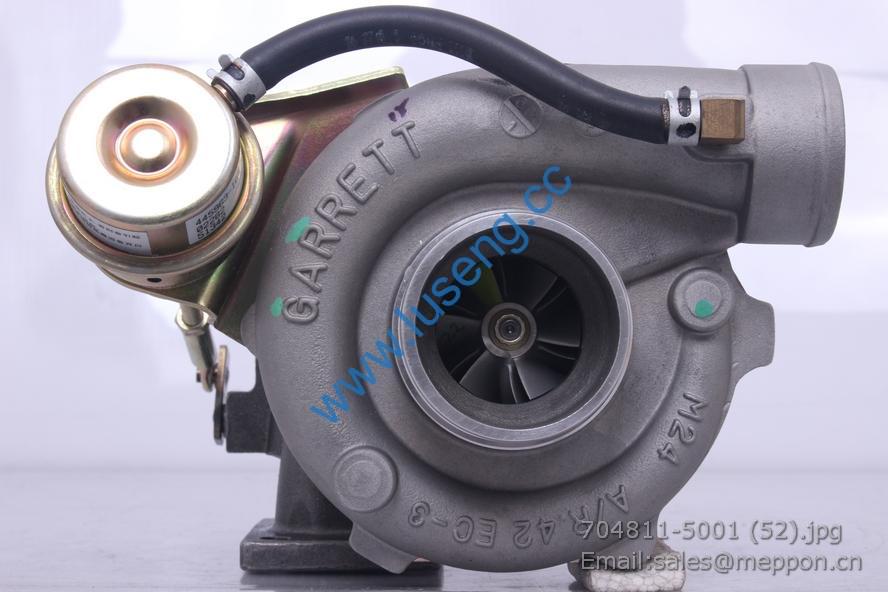

1118010-Y01 turbocharger 704811-5001S

1 531A-1307015 暖风回水接头盖 Warm air-water return joint cover 1
2 530-1307032 暖风回水接头 Warm air-water return joint 1
3 1530-1307029 水泵盖板垫片 Water pump cover plate gasket 1 易损件 EWP
4 1584-1307020G 水泵 Water pump 1
5 Q150B0870TF2 螺栓 M8X70 Bolt M8X70 2
6 Q1200870TF2 螺柱 M8X70 Bolt M8X70 1
7 Q1200860TF2 螺柱 M8X60 Bolt M8X60 1
8 Q40108 垫圈 8 Washer8 5
9 Q40308 垫圈 8 Washer8 5
10 Q360B08 螺母 M8 Nut M8 2
11 Q150B0860TF2 螺栓 M8X60 Bolt M8×60 1
12 1531-1307050A 水泵皮带 SPA1100 Water pump belt 2 易损件 EWP
13 Q67627 环箍 27 Loop hoop 1
14 Q1840812 螺栓 M8X12 Bolt 2
15 E1101-1307250A 水泵进水管组件 Water inlet pump subassembly 1
16 231-1307016 进水软管 Water inlet hose 1
17 Q67664 环箍 64 Loop hoop 2
18 E1101-1307241C 支架 Bracket 1
19 Q150B0820 螺栓 M8X20 Bolt 2
20 Q40308 垫圈 8 Washer8 2
21 6105Q-3509013 垫圈 Washer 2

1 Q1841025TF2 螺栓 M10×25 Bolt M10×25 4
2 365C-1005105 压盘 Pressure plate 1
3 B3269-1308203 阻尼橡胶圈
Resistance
rubber ring
1
4 E08L1-1308150 风扇组件 Fan subassembly 1
5 E05FX-1308205 风扇减振轴
Fan vibration
damper shaft
1
6 Q1841055TF2 螺栓 M10X55 Bolt 4

1 Q1841660TF2 螺栓 M16X60 Bolt M16X60 2
2 B3000-1600021 盖板 Cover plate 1
3 Q1840612 螺栓 M6X12 Bolt M6X12 4
4 E0300-1600401A 飞轮壳 Flywheel case 1
5 L3800-1600411 堵塞 Plug 2
6 G0100-1600412 垫圈 Washer 2
7 Q1841650TF2 螺栓 M16X50 Bolt M16X50 2
8 Q1841230TF2 螺栓 M12X30 Bolt M12X30 2
9 Q1201040 螺栓 M10X40 Bolt M10X40 12
10 Q40110 垫圈 10 Washer10 12
11 Q40310 垫圈 10 Washer10 18
12 Q340B10 螺母 M10 Nut M10 12
13 E0301-1005360 飞轮及齿圈组件 Flywheel and gear assembly 1
14 B30-1005064 飞轮螺栓 Flywheel bolt 7
15 E0301-1005065 轴承衬垫 Bearing liner 1
16 GB/T276-6205-2RS 深沟球轴承 Deep groove ball bearing 1
17 370E-1600200 离合器从动盘组件 Clutch and drive plate assembly 1
18 330-1600033 定位销 Locating pin 1
19 330-1600032 定位销 Locating pin 1
20 370E-1600031 离合器盖及压盘部件 Clutch cover and pressure plate parts 1
21 Q150B1028TF2 螺栓 M10X28 Bolt M10X28 8
