Description

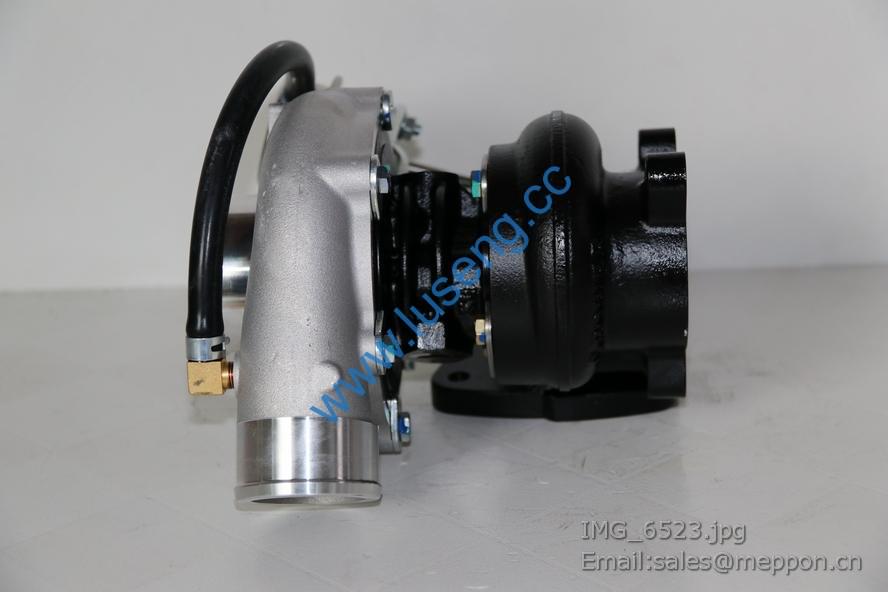

1118010-E4147 turbocharger 2150900028-1

1 Q1840816 螺栓 M8X16 Bolt M8X16 4
2 A30-1003040 上呼吸器焊接件 Upper breather weldment 1
3 A30-1003044 上呼吸器垫片 Upper breather gasket 1
4 A30-1003046 导流罩 Dome 1
5 6105Q-1014001A 呼吸器垫片 Breather gasket 1
6 Q150B0825 螺栓 M8X25 Bolt M8X25 2
7 Q40308 垫圈 8 Lock Washer 8 3
8 Q40108 垫圈 8 Lock Washer 8 2
9 6105Q-1014010A 呼吸器总成 Breather assembly 1
10 A3206-1014003B 通气软管 Gas hose 1
选装件(呼吸器装后气缸
盖罩用)Optional (Use on
rear cylinder head
cover)
A35KA-1014003A 通气软管 Gas hose 1
选装件(呼吸器装前气缸
盖罩用) Optional (Use on
front cylinder head
cover)
11 Q67638 环箍 38 Hoop 38 1
12 A3100-1014005 管夹 Pipe Clamp 1
13 Q150B0820 螺栓 M8X20 Bolt M8X20 1

1 A70-1104110A 回油软管总成 Fuel return hose assembly 1
2 A4400-1104400 柴滤器至喷油泵油管组件 Fuel pipe parts from fuel filter to fuel pump 1
3 A3100-1104010A 高压油管组件Ⅰ High pressure fuel pipeⅠ 1
4 Q1840810 螺栓 M8X10 Bolt M8X10 2
5 A3100-1104020A 高压油管组件Ⅱ High pressure fuel pipeⅡ 1
6 A4400-1104300 输油泵至柴滤器油管组件
Fuel pipe parts from fuel delivery pump to fuel
filter
1
7 B3000-1104308B 接头 Joint 1
8 Q/YC149-14 复合式密封垫圈 14 Compound Seal washer 14 1 易损件 EWP
9 A99-1104206 密封圈 Sealing ring 1
10 A99-1104120 回油管接头 Fuel return pipe joint 1
