Description

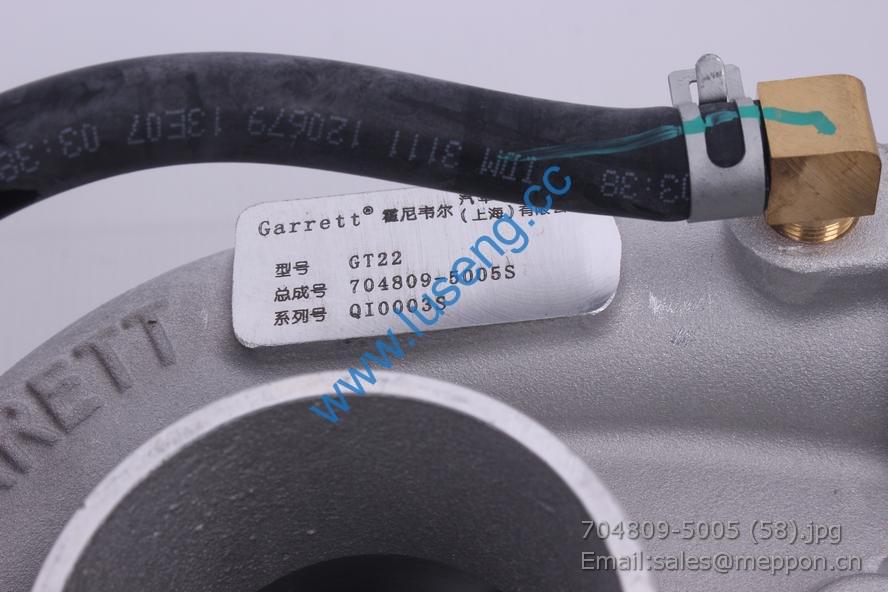

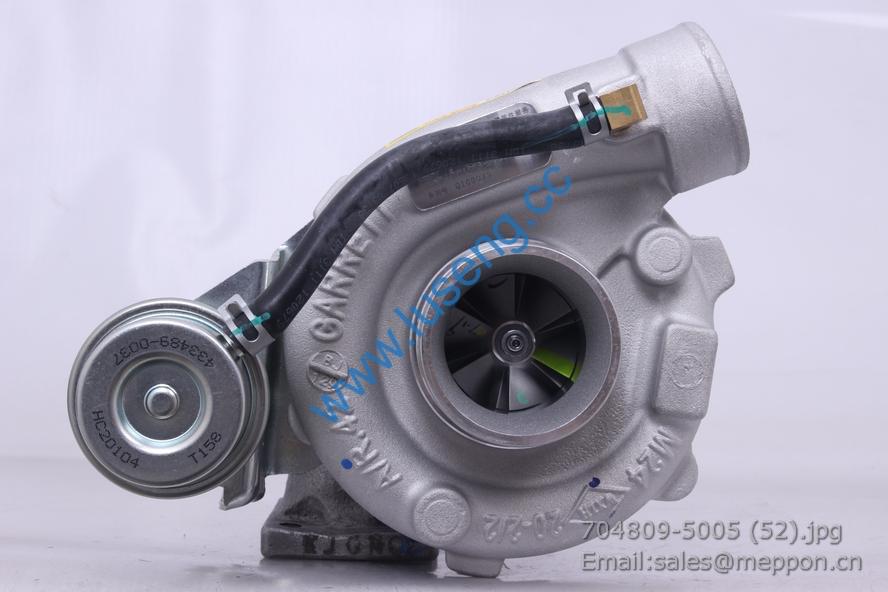

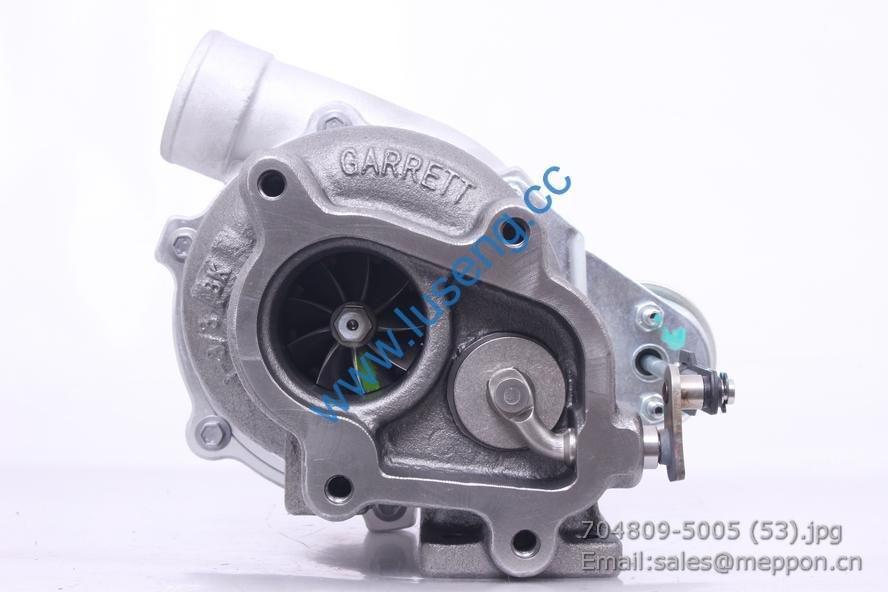

1118010-55D xichai turbocharger 704809-5005S

1 E04F6-1008203A 涡轮后排气接管 Turbine rear exhaust connecting pipe 1
2 Q150B1025TF2 螺栓 M10X25 Bolt M10X25 3
3 Q40110 垫圈 10 Washer10 3
4 E0803-1118003 涡轮出口垫片 Turbine outlet washer 1
5 E0401-1118100-135R 增压器 Turbocharger 1 选装件 optional
E0401-1118100A 增压器 Turbocharger 1 选装件 optional
6 E12F6-1118240B 进油管焊接组件 Fuel inlet pipe weldment groupware 1
7 E0200-1118031A 增压器进油管接头 Turbocharger fuel inlet pipe joint 1
8 Q/YC901-3C12 垫圈 12 Washer 12 1
9 E0800-1118055D 增压器回油接头 Turbocharger fuel return joint 1
10 Q/YC901-3C18 垫圈 18 Washer18 1
11 E0200-1118013 螺母 M8×1 Nut M8×1 4
12 E0800-1118011 双头螺柱 Threaded stud 4
13 1575-1118340 增压器回油管 Fuel return pipe 1
14 YC208-B01700F O 形圈 2.65X17 O-ring 2.65X17 2
15 Q/YC149-14 复合式密封垫圈 14 Compound seal washer 14 1
16 A30-1118021 进油软管接头 Fuel inlet hose joint 1
17 1530-1118012 增压器垫片 Turbocharger gasket 1
18 1575-1118075 支架 Bracket 1
19 Q1201250TF2 螺栓 M12X50 Bolt M12X50 3
20 GB/T6170-12-A1-50 不锈钢螺母 M12 Stainless steel Nut M12 6
21 Q150B1022TF2 螺栓 M10X22 Bolt M10X22 2
22 Q40110 垫圈 10 Washer10 2

1 150-1305015 操纵杆 Steering handle 1
2 Q5003218 销 3.2X18 Pin 3.2X18 1
3 530-1305002A 弯胶管 kneed hose 1
4 Q67627 环箍 27 Hoop 27 1
5 530-1305010C 放水阀部件 Water drain valve parts 1

1 Q150B0830 螺栓 M8X30 Bolt M8X30 3
2 Q40308 垫圈 8 Washer8 6
3 Q40108 垫圈 8 Washer8 6
4 YC4-44 胶盖 44 Rubber cover 44 1
5 530-1306013 节温器盖垫片 Thermostat cover washer 1 易损件 EWP
6 530-1306014 节温器座垫片 Thermostat seat washer 1 易损件 EWP
7 530-1306010B 蜡式调温器 Thermostat 1
8 E02F6-1306003 调温器座 Thermostat seat 1
9 6105Q-1305100 温风进水阀总成
Warm air- water inlet valve
assembly
1
10 Q150B0860 螺栓 M8X60 Bolt M8X60 2
11 Q150B0865 螺栓 M8X65 Bolt M8X65 1
12 Q618B03 螺塞 NPT 3/8 Screw plug NPT 3/8 1
13 Q618B02 螺塞 NPT 1/4 Screw plug NPT 1/4 1
14 E0208-1306012 节温器盖 Thermostat cover 1
