Description

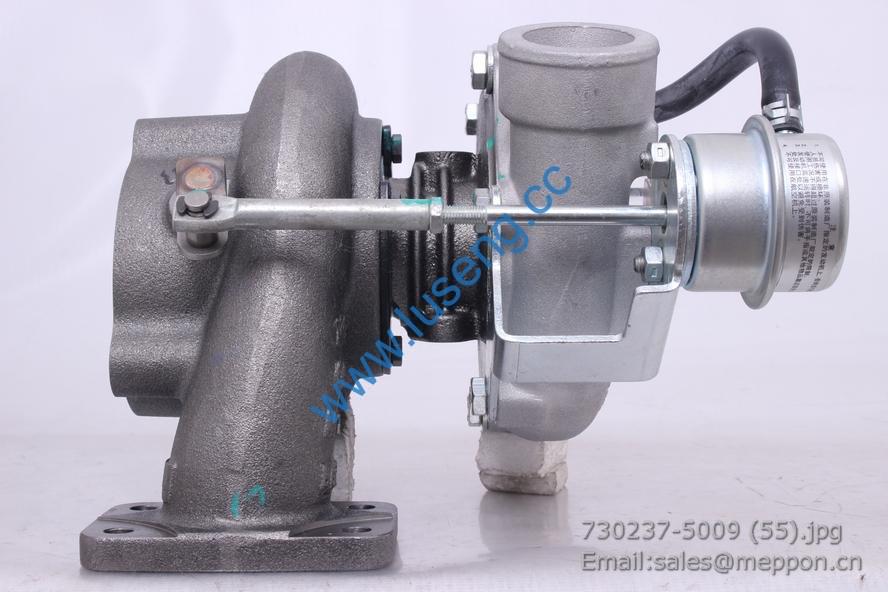

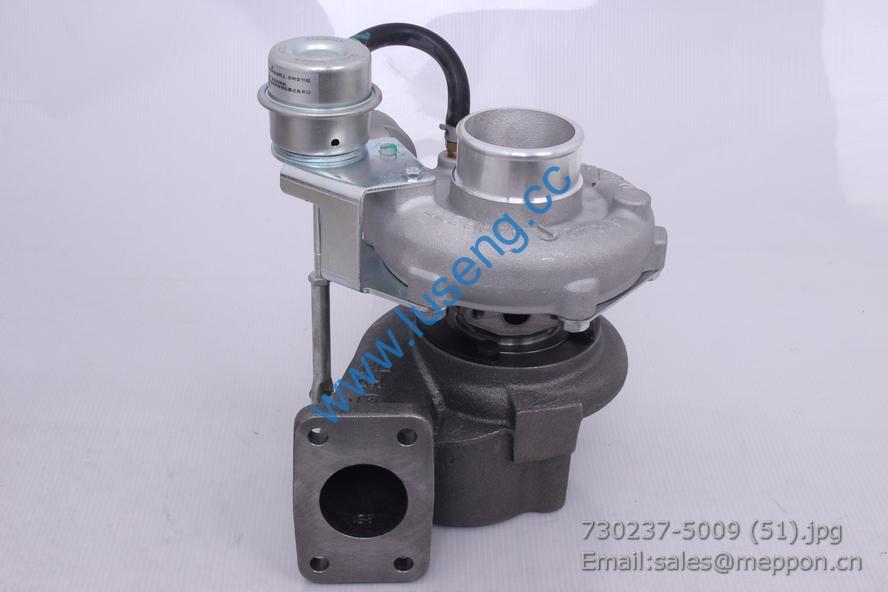

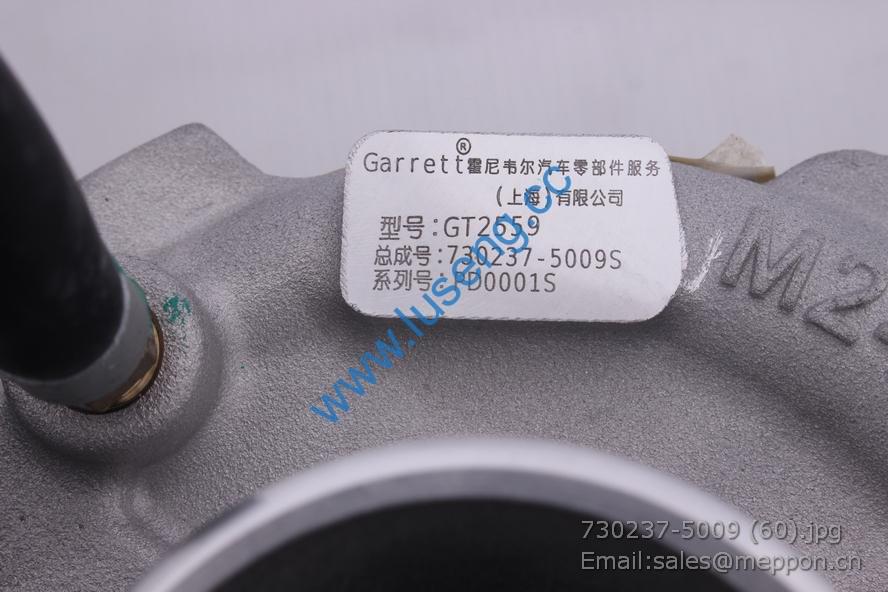

1118010-541-0000 FAW turbocharger 730237-5009S CA4DF2-13

1 6105Q-3509011 喷油泵传动齿轮 Oil pump driving gear 1
2 6QA6-1307017 管接螺栓 Bolt 3
3 Q/YC149-14 复合式密封垫圈 14 Compound seal washer 14 6 易损件 EWP
4 373-3509002 空压机回水管 Water return pipe, air compressor 1 易损件 EWP
5 J45D2-3509015 空压机堵塞 Air compressor blockage 1
6 J42H1-3509010 空压机进气接头 Air inlet joint, air compressor 1
7 G4606-3509014 密封垫片 Sealing spacer 2 易损件 EWP
8 E0300-3509015 空压机堵塞 Air compressor blockage 1
9 B4000-3509100C 空气压缩机 Air compressor 1
10 B3000-3509005 水管接头Ⅱ Water pipe jointⅡ 1
11 Q67622 环箍 22 Loop hoop 22 2
12 B3000-3509003A 空压机进水胶管
Water inlet rubber pipe, air
compressor
1
13 B3000-3509004 水管接头Ⅰ Water pipe jointⅠ 1
14 Q340B08 螺母 M8 Nut M8 1
15 Q40308 垫圈 8 Lock Washer 8 1 易损件 EWP
16 Q40108 垫圈 8 Lock Washer 8 1 易损件 EWP
17 330-1111371 支架 Bracket 1
18 M3200-1104363 胶套 Rubber sleeve 1 易损件 EWP
19 M3200-1104362 管夹 Pipe clamp 1
20 Q150B0820 螺栓 M8×20 Bolt M8×20 1
21 Q1841216 螺栓 M12×16 Bolt M12×16 1
22 J4101-3509240 空压机进油管组件 Lubricant pipe, air compressor 1
23 6105Q-1007073 接头螺栓 Joint bolt 2

24 Q/YC149-8 复合式密封垫圈 8 Seal washer 8 4 易损件 EWP
25 630-1002041A 空压机垫片 Air compressor gasket 1 易损件 EWP
