Description

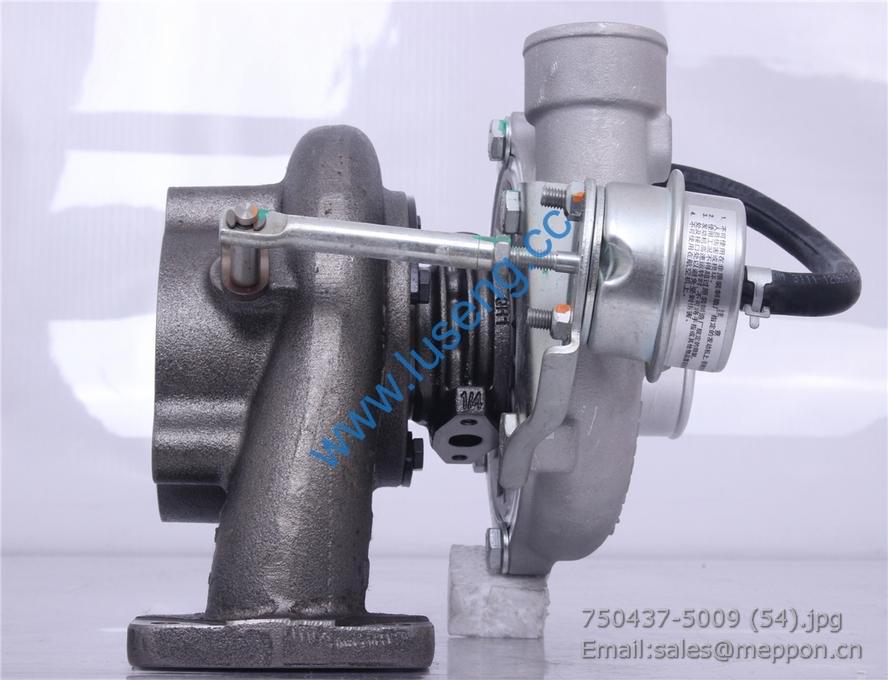

1118010-520-YT10 WUXI DIESEL (WXD) turbocharger 750437-5009S

1 Q1201055 螺柱M10X55 Bolt M10X55 4
2 Q340B10 螺母M10 Nut M10 4
3 Q40310 垫圈10 Washer10 4
4 Q40110 垫圈10 Washer10 4
5 E0300-1008102B 进气接管 Intake connecting pipe 1
6 1530-1008105C 进气接管垫片 Intake connecting pipe gasket 2
7 E0300-1015050 加热器 Heater 1
8 E2100-1008101 进气管 Intake manifold 1
9 G2000-1008104 进气管垫片 Intake manifold gasket 1
10 Q150B08120 螺栓M8X120 Bolt M8X120 8
11 Q40308 垫圈8 Washer8 12
12 Q40108 垫圈8 Washer8 12
13 Q150B0845 螺栓M8X45 Bolt M8X45 4
14 Q/YC149-20 复合式密封垫圈20 Sea washer20 2
15 Q/YC198-20 螺塞M20X1.5 Screw plug M20X1.5 2

1 G2A00-1008204A 排气管 Exhaust manifold 1
2 Q1840825TF2 螺栓M8X25 Bolt M8X25 3
3 G2000-1008250A 排气管垫片组件 Exhaust manifold washer assembly 4
4  E0200-1008211A 排气管罩 Exhaust pipe cover 1
5 Q150B0816 螺栓M8X16 Bolt M8X16 5
6 Q40208 垫圈8 Washer8 5
7 Q1840855TF2 螺栓M8X55 Bolt M8X55 13
8 J45D1-1008226 螺栓套 Bolt sleeve 13

1 6105Q-1009031C 放油塞 Oil drain plug 1
2 6105Q-1009032A 放油塞磁铁 Oil drain plug magnet 1
3 Q/YC149-27 复合密封垫圈27 Seal ring 27 1
4 Q1841020 螺栓M10X20 Bolt M10X20 26
5 530-1009002 垫圈 Washer 26
6 G0100-1009020B 油底壳焊接件 Oil sump weldment 1
7 530-1009011 油底壳垫片 Oil pan gasket 1 易损件
