Description

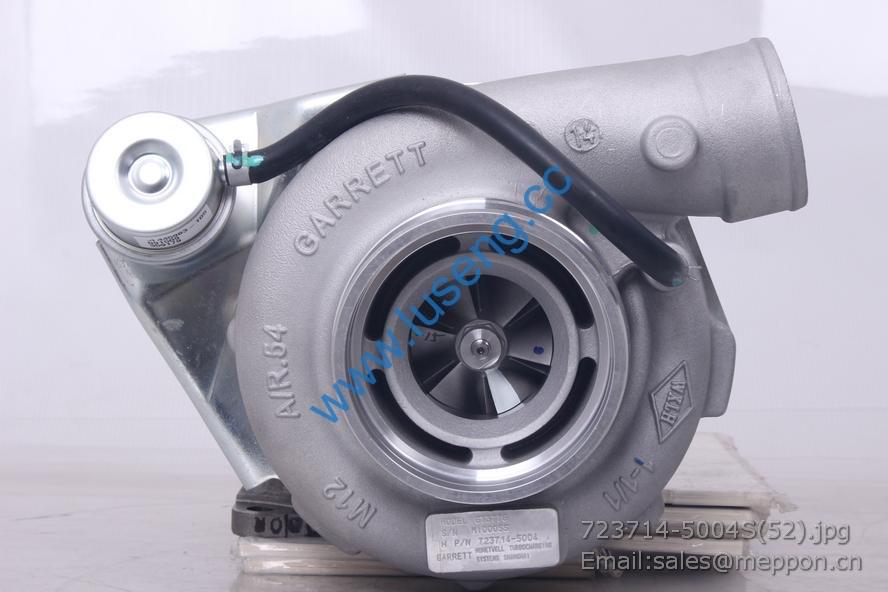

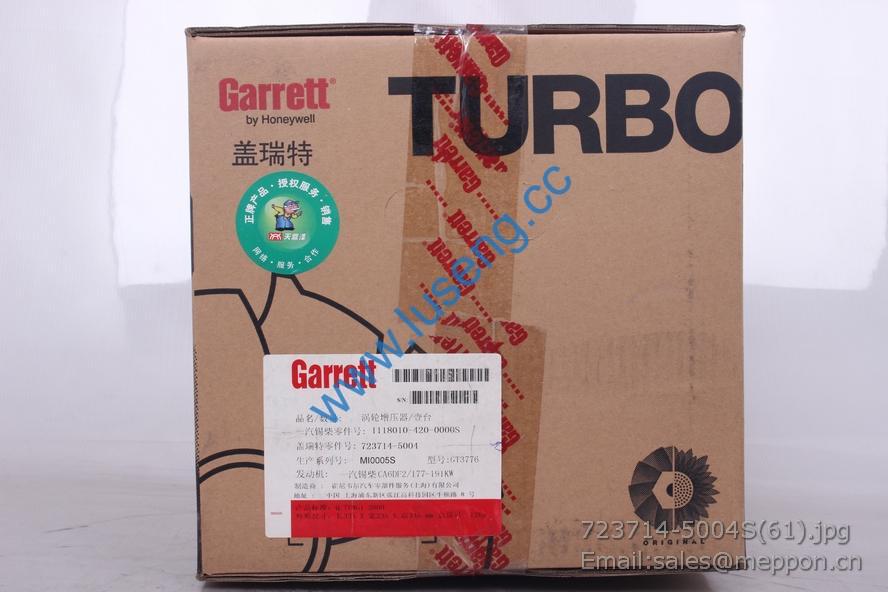

1118010-420-0000s FAW turbocharger 723714-5004S

1 HA11561 4100QB-11.04-CL 打气泵回水管合件 Water return pipe ,inflation pump 1
2 JB/T6013 铰接螺栓 Hinge bolt M14×1.5 4
3 47001 组合垫圈 Combination washer 14 8
4 47001 组合垫圈 Combination washer 10 4
5 HA11057 4100QB-11.04A-DF 打气泵进油管合件 Fuel delivery rubber tube M12×70 1
6 JB/T6013 铰接螺栓 Hinge bolt M10×1 2
7 HA10000338 YN33CR-700003 空气压缩机总成 Air compressor assembly 1
8 GB/T 97.1 平垫 Plain washer 12 2
9 GB 93 弹垫 Spring washer 12 2
10 GB/T 5782 螺栓 Bolt M12×70 2
11 HA2280 4100QBZL-22.01 打气泵进水管合件
Water intake pipe seam,inflation
pump
1

1 J1A15-1002000/01 气缸体总成 Cylinder Block Assembly
2 J1A16-1002200/03 齿轮室部件 Gear Housing Parts
3 J1A15-1003000/01 气缸盖及气缸盖罩总成
Cylinder Head& Cylinder Head Cover
Assembly

4 J3600-1004000/03 活塞连杆总成 Piston Connecting Rod Assembly
5 J1A17-1005000/01 曲轴减振器总成 Crankshaft Vibration Damper Assembly
6 630-1006000A/02 凸轮轴总成 Camshaft Assembly
7 J4200-1007000/01 气门挺杆总成 Valve Tappet Assembly
8 J4097-1008100/03 进气管部件 Intake Manifold Parts
J41JA-1008500/05 进气接管部件 Intake Connecting Manifold Parts
9 J4099-1008200/06 排气管部件 Exhaust Manifold Parts
10 J4205-1009000/03 油底壳总成 Oil Sump Assembly
11 430D-1010000/11 机油收集器总成 Oil Collector Assembly
12 B3000-1011010/06 机油泵组件 Oil Pump Subassembly
13 J1AD2-1012000/02 机油滤清器总成 Oil Strainer Assembly
14 J1A17-1013000/02 机油冷却器总成 Oil Cooler Assembly
15 J4097-1014000/10 曲轴箱通风装置总成 Crankcase Ventilation Device Assembly
16 J1A18-1104000/03 供给系管路总成 Fuel Supply Pipeline Assembly
17 J42QA-1105000/10 柴油滤清器总成 Fuel Filter Assembly
18 J1A99-1111000/03 喷油泵总成 Fuel Injection Pump Assembly
19 A1101-1112000/01 喷油器总成 Fuel Injector Assembly
20 J4218-1115000/01 断油机构总成 Fuel Shut-off System Assembly
21 J1AF5-1118000/02 增压器总成 Turbocharger Assembly
22 J4218-1303000/07 散热器水管及软管总成 Water Pipe& Hose of Radiator Assembly 23 631-1305000/06 放水开关总成 Water Drain Assembly
24 J1D17-1306000/02 调温器总成 Thermostat Assembly
25 J1A15-1307000/01 水泵总成 Water Pump Assembly
26 J1A15-1308000/02 风扇总成 Fan Assembly
27 J1A15-1600000/01 动力输出总成 Power Output Assembly
28 J41F1-3407000/01 转向泵总成 Steering Pump Assembly
29 J1A15-3509000/02 气制动空气压缩机总成 Pneumatic Air Compressor Assembly
30 J1A16-3701000/04 发电机总成 Alternator Assembly
31 J1A17-3708000/01 起动机总成 Starter Assembly
32 J1A15-3800000/02 仪表、感应器总成 Instrument& Sensor Assembly
33 J1A00-3904000/01 铭牌 Data plate
