Description

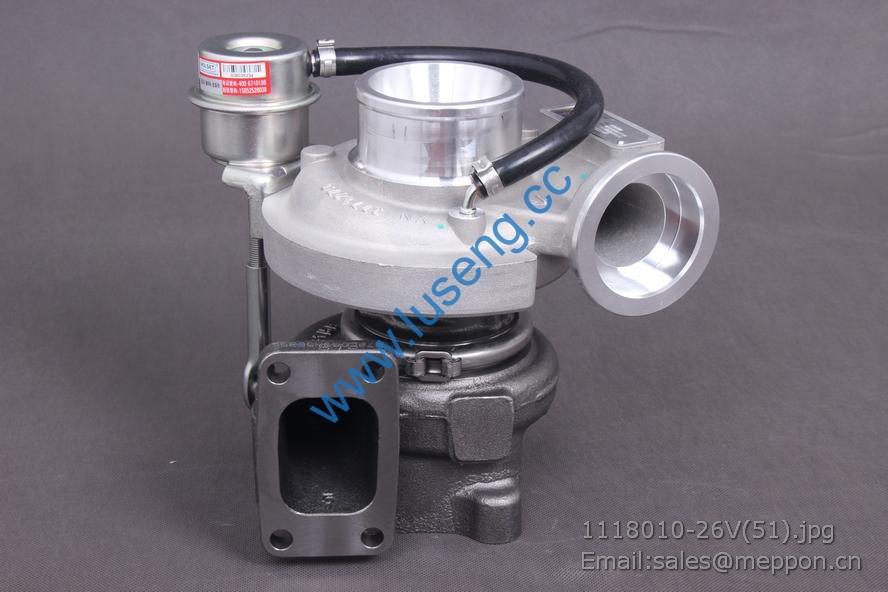

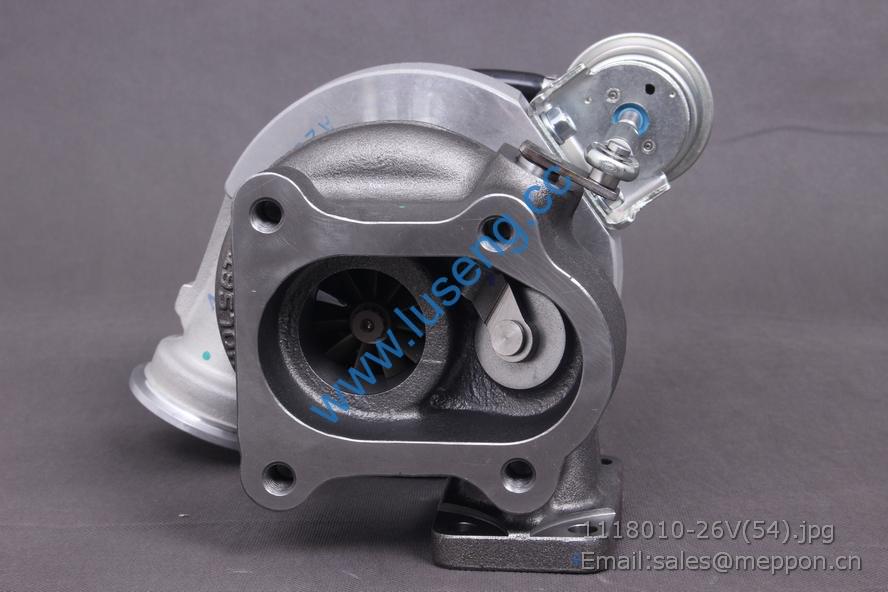

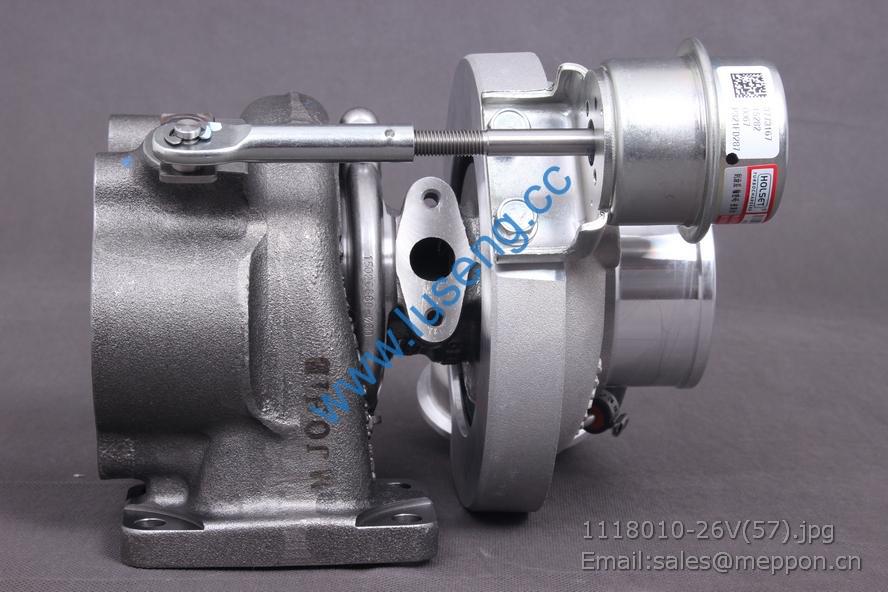

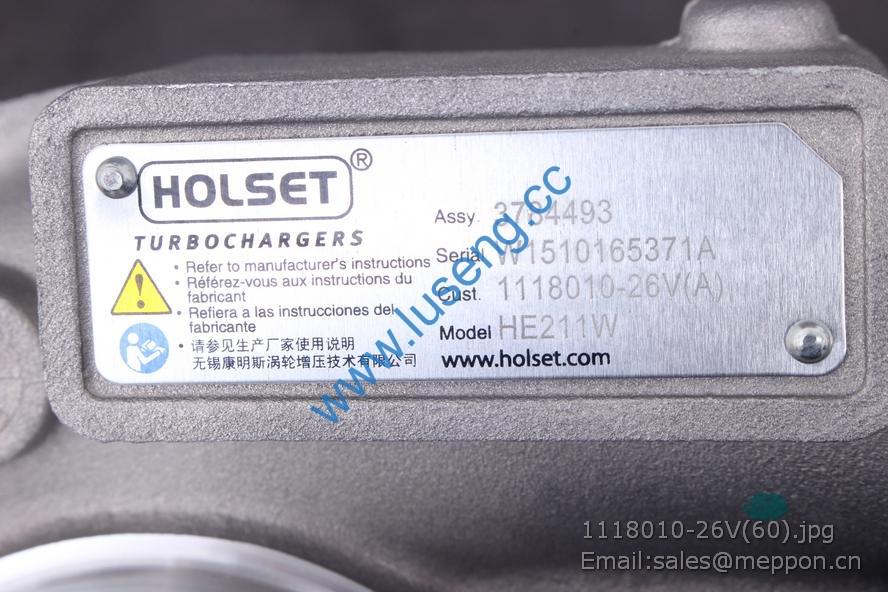

1118010-26V turbocharger 3784493

1 AZ9719540019 1 Gasket
1 WG9112540015 8×4,HHR Gasket
2 Q150B1045 4 Screw
2 181560110187 6 HHR Stud
3 Q33210 4 HHR Nut
3 190003888470 6 HHR Nut
4 WG9719540009 1 For standard cab Exhaust line
4 WG9719540012 1 For long,high-roof cab Exhaust line
4 WG9731540001 1 8×4 Exhaust line
4 WG9725540001 1 HHR Exhaust line
4a AZ9725540012 1 HHR Heat shield
4b Q150B0835 2 HHR Screw
4c Q40108 2 HHR Washer
4d Q40308 2 HHR Spring washer
5 Q150B0830 2 Screw
6 WG9719540016 1 Clamp
6 WG9725540009 4 HHR Clamp
6a Q150B0845 4 HHR Screw
6b Q33208 4 HHR Nut
7 Q33208 2 Nut
8 WG9719540021 1 Corrugated flexible metal tube
8 WG9731540002 1 8×4 Corrugated flexible metal tube
8 WG9725540007 1 HHR Corrugated flexible metal tube
9 Q150B0830 1 Screw
10 AZ9719540018 1 Clamp
11 Q33208 1 Nut
12 WG9725540002 1 Muffler
12 WG9725540010 1 HHR Muffler
13 AZ9719540008 2 Strap
14 WG9719540025 1 Garnish plate
15 Q150B0620 4 Screw
16 Q40306 4 Spring washer
17 Q150B0610 9 Screw
18 WG9719540026 1 Heat shield
19 AZ9719540007 2 Stop plate
20 AZ9719540002 1 Rear bracket
21 AZ9719540003 1 Front bracket
22 Q33208 4 Nut
23 Q33212 4 Nut
24 Q150B1235 4 Screw
30 WG9731540003 1 8×4 Exhaust line
31 Q150B1025 4 8×4 Screw
32 Q40310 4 8×4 Spring washer
33 WG84D410007 4 8×4 Rubber pad
34 Q40210 4 8×4 Washer
35 AZ9731540004 2 8×4 Bracket
36 Q150B1016 4 8×4 Screw
37 Q40310 4 8×4 Spring washer
40 AZ9731540005 2 8×4 Clamp
41 AZ9731540006 2 8×4 Clamp
42 Q150B1035 4 8×4 Screw
43 Q150B1025 2 8×4 Screw
44 Q33210 6 8×4 Nut
45 WG9719540021 1 8×4 Corrugated flexible metal tube

1 AZ9725190001 1 HHR Supporter 空滤器固定板总成
1 WG9719190002 1 For WD615 Supporter 空滤器支架总成
1 AZ9725190065 1 For WD618 Supporter 空滤器支架总成
2 WG9100190026 1 Strap 紧固带总成
3 WG9725190063 1 For WD618 Air filter 空滤器总成
3 WG9719190001 1 Air filter 空滤器总成
3 WG9725190045 1 HHR Air filter 空滤器总成
3a WG1200190040 1 Sensor 堵塞指示灯开关
3—1 WG9719190001-1 1 Filter element 空滤器滤芯
3—1 WG9725190063-1 1 WD618 Filter element 空滤器滤芯
3—1 WG9725190045-1 1 HHR Filter element 空滤器滤芯
4 AZ9003980025 6 Clamp 软管卡箍，145/185 N05074
5 WG9719190046 1 Hose 橡胶套管
5 AZ9725190062 1 For WD618 Hose 橡胶套管
5 WG9725190042 1 HHR Hose 空气软管
6 WG9719190033 4 Rubber block 橡胶减震块总成
7 WG9719190030 4 Bracket 进气道小支架
7 AZ9719190036 4 For high roof cab Bracket 进气道小支架
8 Q1840825 8 Screw 六角法兰面螺栓
9 Q33208 8 Nut 六角头螺母
10 WG9719190013 1 Air intake line I 进气道总成Ⅰ
11 WG9719190016 1 Strap 紧固带总成
12 WG9719190015 1 Siphon 橡胶波纹管
13 WG9719190014 1 Air intake line Ⅱ 进气道总成Ⅱ
13 WG9725190061 1 For WD618,HHR Air intake line Ⅱ 进气道总成Ⅱ
14 Q150B0810 2 Screw 六角头螺栓
15 Q150B0825 1 Screw 六角头螺栓
16 Q40108 7 Washer 平垫圈
17 Q33008 5 Nut 全金属六角法兰面锁紧螺母
18 WG9719190009 1 Hose 进气软管
19 Q150B1030 3 Screw 六角头螺栓
20 Q40610 3 Spring washer 弹簧垫圈
21 1113 010043 3 Spacer 隔套
22 WG9719190040 1 Bracket 进气道支架
22 AZ9725190081 1 For WD618,HHR Bracket 进气道支架
22a AZ9725190079 1 ForWD618,HHR Bracket 支架
23 WG9719190050 1 For long cab,high roof cab Pipe 加长管总成
24 WG9725190041 1 HHR Hose 出气软管
24 WG9719190008 1 Hose 出气软管
25 199100190065 1 Sheet 加强板
26 1280 550028 1 Bolt 内螺纹销
27 1280 550029 1 Screw 拉紧螺栓
28 1280 550027 1 Bolt 内螺纹销
29 Q33212 4 Nut 六角头螺母
30 Q150B1235 4 Screw 六角头螺栓
