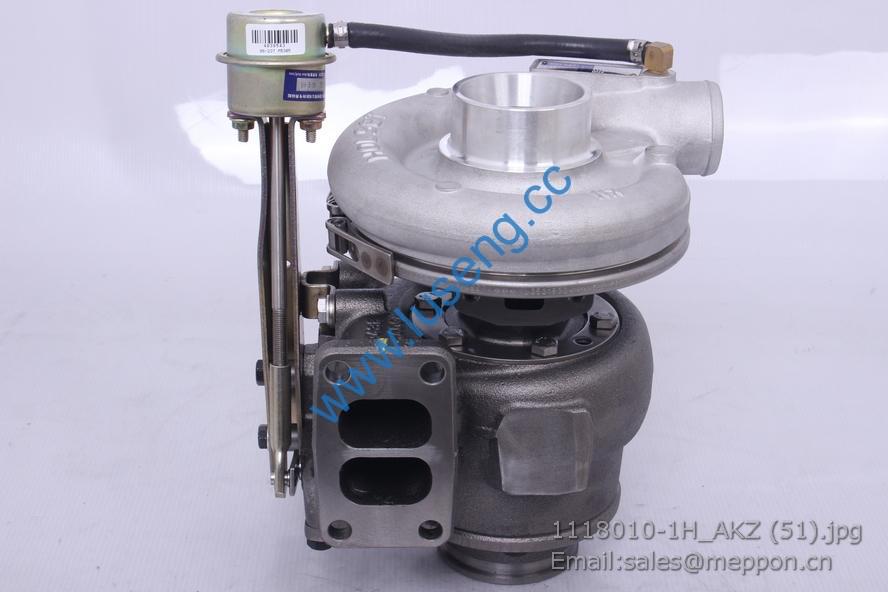

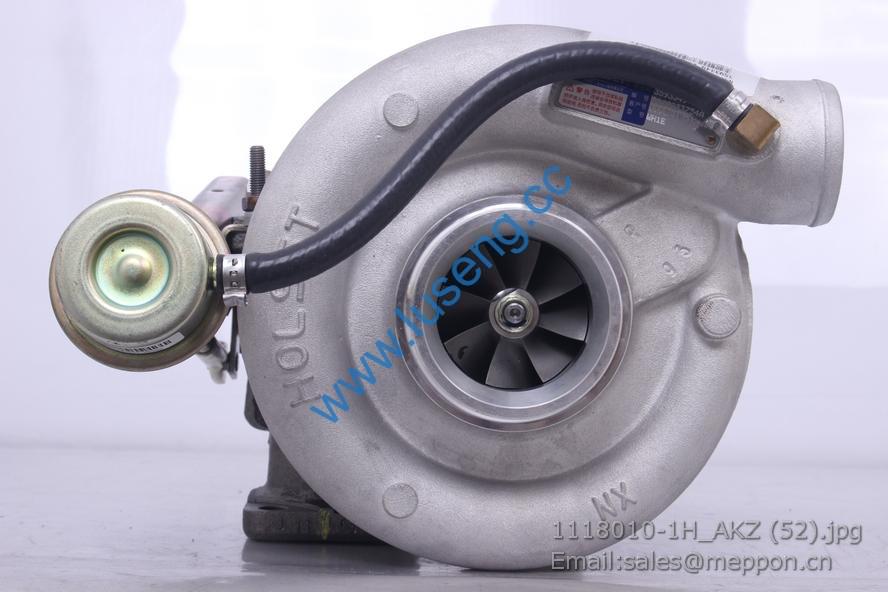

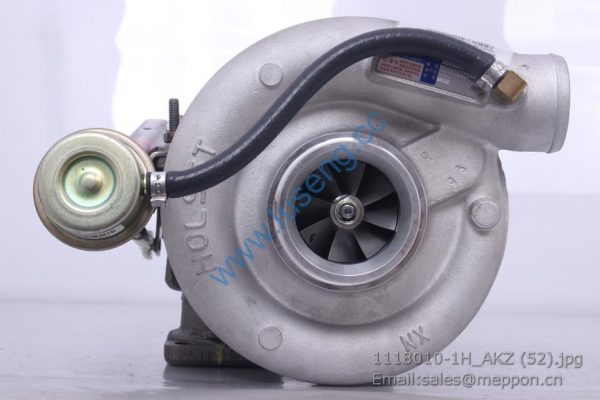

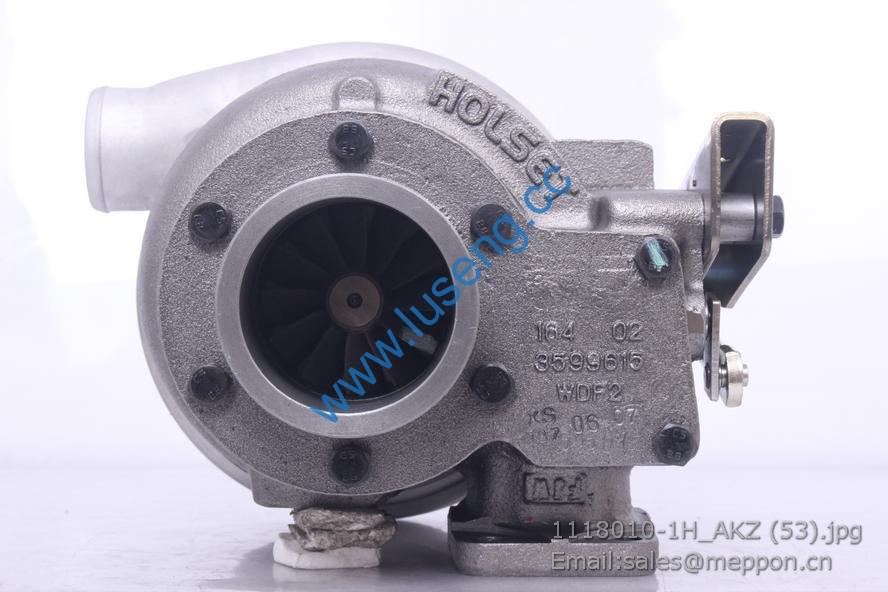

1118010-1H_AKZ turbocharger 3593349 1118010-1H
1 190003989315 10 Clamp
2 WG9719530108 1 Hose
2 WG9725538041 1 HHR Hose
5 WG9719530107 2 Hose connector
5 WG9725538043 1 HHR Hose
8 WG9725530070 2 62,87 Hose
8 WG9719530108 1 47,69,82 Hose
8 WG9725538042 1 HHR Hose
9 WG1620840060 1 47 Hose
9 WG1600840029 1 62,87,69,HHR Hose
10 1900043989301 8 Clamp
11 WG9719530250 1 47 Aftercooler
11 WG9725530020 1 62,87,69 Aftercooler
11 WG9725530090 1 82 Aftercooler
11 WG9725538060 1 HHR Aftercooler
12 WG9719530230 1 47 Radiator
12 WG9719530010 1 62,87,69 Radiator
12 WG9725537070 1 82 Radiator
12 WG9725538050 1 HHR Radiator
13 Q150B0816 6 Screw
14 Q40008 14 Washer
15 Q41208 6 Spring washer
16 Q150B0820 4 Screw
17 Q40308 9 Spring washer
18 Q40108 4 Washer
19 1780 530009 2 Fastening sheet
20 Q150B1018 4 Screw
21 Q40310 9 Spring washer
22 Q40110 4 Washer
23 Q33208 10 Nut
24 190003980204 1 Clamp
25 190003989300 4 Clamp
26 WG9114530138 4 Hose
27 AZ9003980010 6 Clamp
28 WG9719530111 1 62,87,69,47 Inletwater pipe
28 WG9725537005 1 82 Inletwater pipe
28 WG9725538008 1 HHR Inletwater pipe
30 AZ9719530122 1 62,87,69,47 Outlet air pipe
30 WG9725537004 1 82 Outlet air pipe
30 WG9725538044 1 HHR Outlet air pipe
31 WG9114530139 1 Hose
32 WG9716530307 1 Hose
33 WG9716530305 1 Hose
34 WG9716530510 1 Junction pipe
35 WG9112530468 1 Hose
36 WG9719530228 1 Hose
45 WG9719530212 1 47 Outlet water pipe
45 WG9719530003 1 62,87,69 Outlet water pipe
45 WG9719537007 82 Outlet water pipe
45 WG9725538014 1 HHR Outlet water pipe
46 WG9719530227 1 Hose
46 WG9725537021 1 82 Hose
46 WG9725538063 1 HHR Hose
46a AZ9716530505 1 47,82 Bracket
46a AZ9716530521 1 62,87,69 Bracket
49 WG9719530260 1 Expansion tank
49 AZ9112530333 1 HHR Expansion tank
49a AZ9725538099 1 HHR Bracket
49b AZ9725538125 1 HHR Bottom bracket
61 AZ9725538055 1 HHR Shroud
61 WG9725537001 1 82 Shroud
61 AZ9719530132 1 47 Shroud
61 AZ9725530401 1 87,62 Shroud
61 AZ9725533037 1 69 Shroud
65 AZ9719530272 2 Rubber support
65a Q40010 8 Washer
65b Q40310 8 Spring washer
65c Q33210 8 Nut
70 AZ9719530201 1 Bracket left for radiator
70a AZ9719530202 1 Bracket right for radiator
70b Q150B01816 8 Screw
70c Q40308 8 Spring washer
75 AZ9719530205 1 Supporting plate left
75a AZ9719530206 1 Supporting plate right
75b Q150B1025 2 Screw
75c Q340B10 2 Nut
80 AZ9725538065 1 HHR Top supporter for radiator
80a AZ9725538066 1 HHR Bottom supporter for radiator
81 AZ9725538073 1 HHR Left bracket for radiator
85 AZ9725538076 1 HHR Right bracket for radiator
