Description

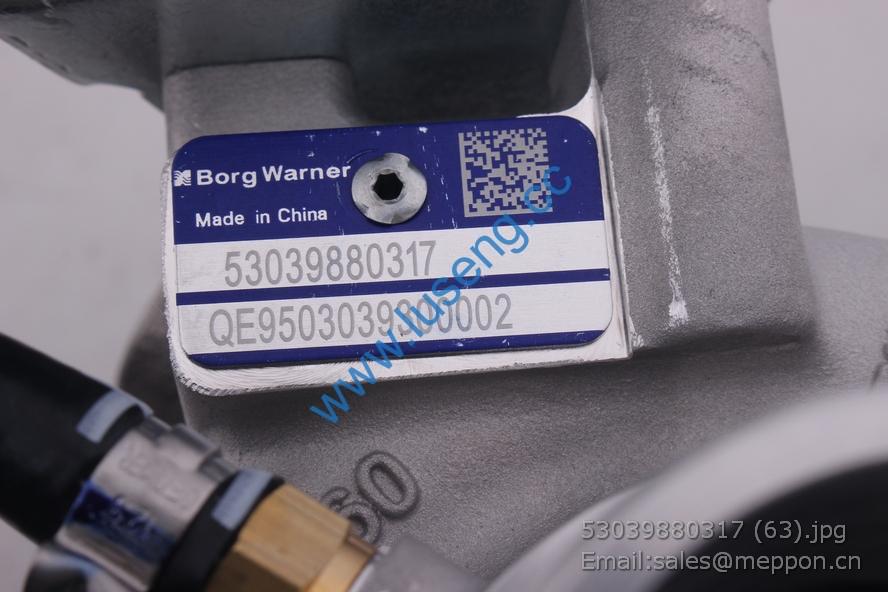

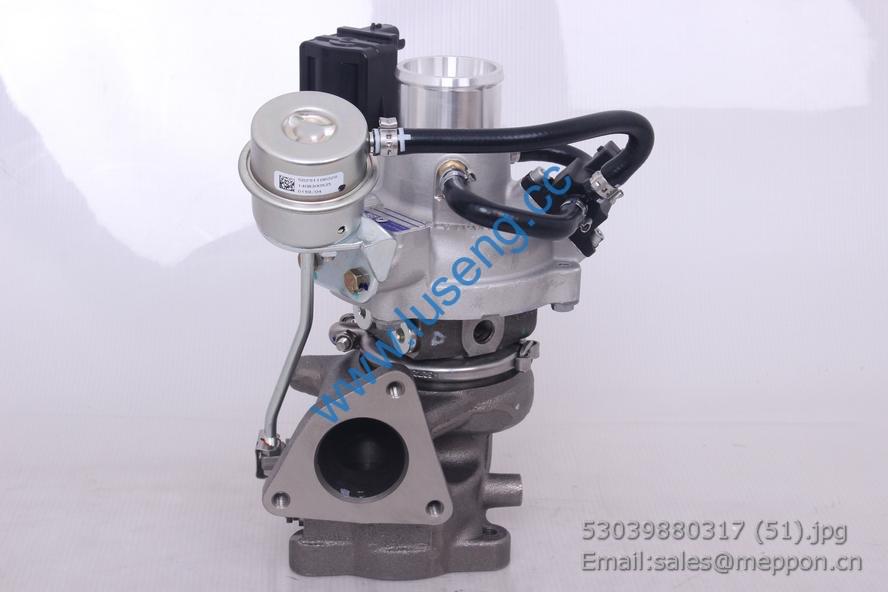

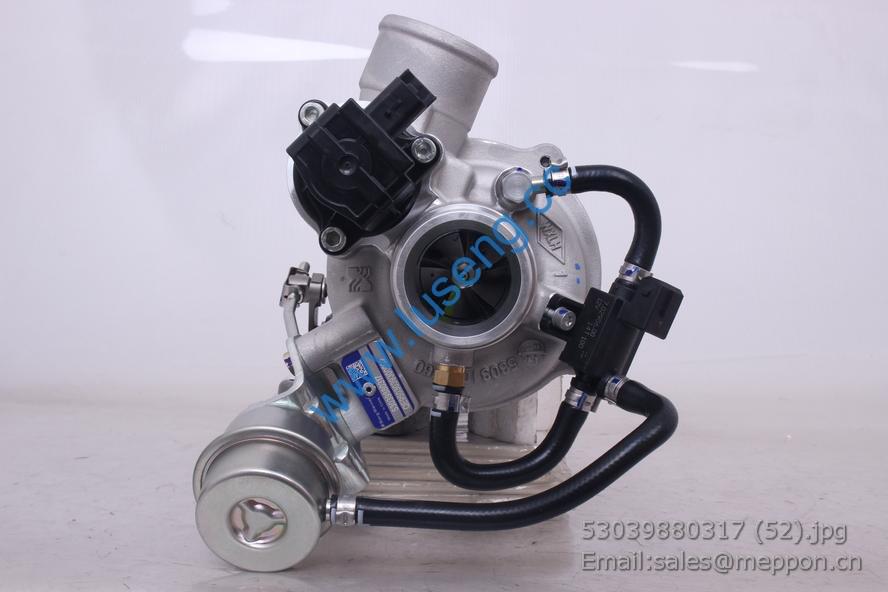

10100331820000 turbocharger

1 GB5783-86 螺栓M10×25 Bolt.M10×25 2
2 GB93-87 垫圈10 Spring Washer.Φ10 2
3 2100QB-03-021 后吊耳 Rear lifting eye 1 HA0321
4 495QA-01.01-007 碗形塞Φ32 Plug.Φ32 4 HA01238
5 4100QBZL-01-005 气缸盖垫片 Gasket, cylinder head to cylinder block 1 HA01881
6 495QA-03.01-006 碗形塞Φ24 Plug Φ24 2 HA03124
7 4100QB-01-002 气缸盖螺栓Ⅱ Bolt (Ⅱ), cylinder head 10 HA01116
8 4100QB-01-003 气缸盖螺栓Ⅲ Bolt (Ⅲ), cylinder head 4 HA01117
9 GB898-88 螺柱M8×40 BoltM8×40 8
10 GB93-76 垫圈8 Spring washer 8 8
11 GB51-76 螺母M8 Nut M8 8
12 4100QB-01-001 气缸盖螺栓Ⅰ Bolt (Ⅰ), cylinder head 4 HA01115
13 4100QBZL-03.03.02 加油口盖合件 Oil filler cap 1 HA0302
14 4100QBZL-03.03.01 缸盖罩铆合件 Cylinder head cover 1
15 4100QB-03-017 缸盖罩螺母 Nut, cylinder head cover 4 HA0354
16 4100QB-03-016 垫片 Gasket 4 HA03126
17 4100QB-03-015 密封套 Seal rubber ring 4 HA0336
18 GB898-88 螺柱AM10×75 Bolt AM10×75 4
19 4100QB-03-014-FEV 缸盖罩垫片 Gasket, cylinder head cover 1 HA03149
20 GB5783-86 螺栓M10×25 Bolt M10×25 2
21 GB93-87 垫圈10 Spring washer 10 2
22 4100QBZL-03-020-FT 前吊耳 Front lifting eye 1 HA03218
23 495QA-03.01-006 碗形塞Φ24 Plug Φ24 3 HA03124
24 GB21-76 螺栓M8×16 Bolt M8×16 7
25 GB93-87 垫圈8 Spring washer 8 7
26 495QA-03-009 缸盖后盖板 Cylinder rear cover 1 HA03123
27 495QA-03-008 缸盖后盖板垫片 Gasket, rear cover 1 HA0331
28 4100QBZL-03.01A 气缸盖 Cylinder head 1 HA03272

1 4100QBZ-04A-003 第一道气环 Top compression ring 4 HA0415G03
2 4100QBZ-04A-002 第二道气环 Second compression ring 4 HA0415F02
3 4100QBZ-04.01A-002 螺旋撑簧 Expander 4
4 4100QB-04.01-003 弹簧锁口 Latch 4
5 4100QBZ-04.01A-001 油环环体 Side rail 4
6 4100QB-04-005 活塞销 Piston pin 4
7 4100QBZL-04-001 活塞 Piston 4 HA0405
8 495QA-04.02-004 连杆衬套 Connecting rod bushing 4 HA0446
9 4100QB-04.02B 连杆合件 Connecting rod 4 HA0467
10 4100QBZ-04-006 连杆轴瓦 Connecting rod bearing shell 8 HA0423
11 4100QB-04.02-003 连杆螺栓 Connecting rod bolt 8 HA0441
12
13 GB893.1-86 孔用弹性挡圈Φ35 Retaining ring Φ35 8 HB071

1 4100QB-05-001-NJ 曲轴皮带轮螺栓 Bolt, V-belt pulley, crankshaft 1 HA051
2 4100QBZL-05.03-FT 曲轴皮带轮 V-belt pulley, crankshaft 1 HA05288
3 4100QBZL-05-004 前挡油圈 Oil baffle disc 1 HA05172
4100QBZ-05-006A 曲轴 Crankshaft 1 HA05276
4100QB-05-012 垫套 1 HA05284
5 4102QB-01-009 前后主轴承下瓦(Ⅰ,Ⅴ) Main bearing lower shells, Ⅰ, Ⅴ 2
6 4102QB-01-007 中间主轴承下瓦(Ⅱ, Ⅲ, Ⅳ) Main bearing lower shells, Ⅱ, Ⅲ, Ⅳ 3
7 GB278-82 轴承60203 Ball bearing 60203-2Z 1
8 GB119-86 圆柱销B10×25 Straight pin B10×25 1
9 4100QB-05-008C 飞轮 Flywheel 1 HA05278
10 4102QB-05-010 飞轮紧固螺栓 Bolt, flywheel 6 HA0540
11 4102QB-05-009A 防松垫片 Check washer 3 HA0586
12 495QA-05-011 离合器压盘定位螺栓 Bolt, flywheel 6 HA0541
13 4102QBZ-05-007 飞轮齿圈 Gear ring of flywheel 1 HA05215
14 4102QB-01-010 曲轴止推片 Crankshaft thrust washer 4 HA0199
15 4102QB-01-006 中间主轴承上瓦(Ⅱ, Ⅲ, Ⅳ) Main bearing upper shells, Ⅱ, Ⅲ, Ⅳ 3
16 4102QB-01-008 前后主轴承上瓦(Ⅰ, Ⅴ) Main bearing upper shells, Ⅰ, Ⅴ 2
17 GB1096-76 平键10×60 Flat key A10×60 1
18 255Y 离合器盖及压盘总成（255Y） Clutch plate assembly 1
19 255CC 从动盘总成（255CC） Diaphragm spring pressure plate assembly 1
