Description

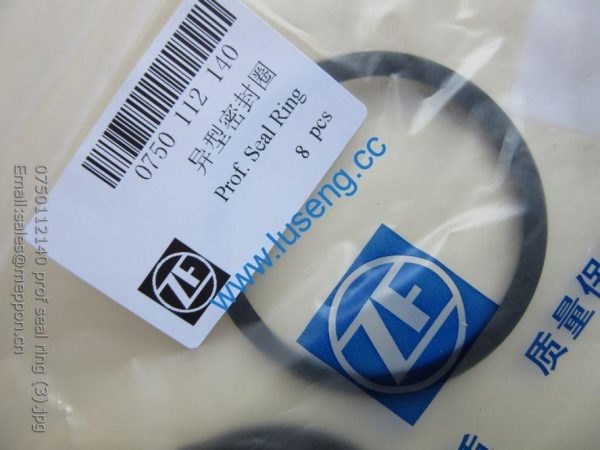

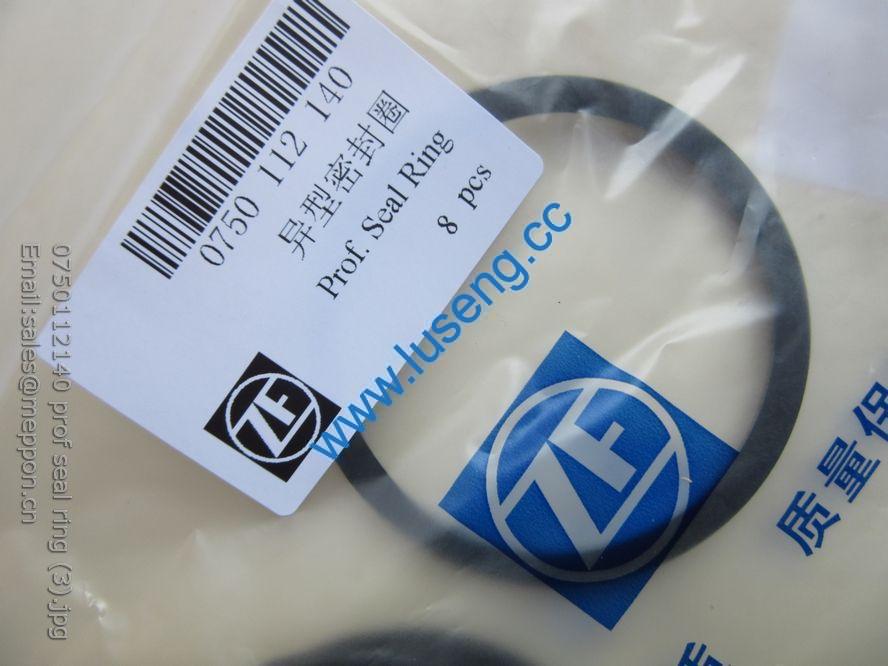

0750112140 prof seal ring 4110000076353 SP100248 W43001087 W030601730 4110000076100
1 65.06301-0158 PIPE ; COOLING WATER 1 1 1 1
2 65.06903B0010 GASKET ; COOLING WATER PIPE 1 1 1 1
3 06.01913-3318 BOLT ; HEX. M12x1.75×35 2 2 2 2
4 06.15010-2313 WASHER ; PLAIN 2 2 2 2
5 420108-00158 HOSE ; RUBBER 1 1 1 1
6 65.97440-5005 CLAMP ; HOSE 2 2 2 2
7 65.06301-0368 PIPE ; COOLING WATER 1 1 1 1
8 06.01923-3124 BOLT ASS’Y M8x65 1 1 1 1
9 120122-00048 BOLT ; STAY 2 2 2 2
1 65.06402-0006 THERMOSTAT 3 3 3 3
2 06.56342-1208 O-RING 3 3 3 3
3 65.06901A0069 GASKET 3 3 3 3
1 400921-00021 WATER PUMP ASS’Y 1 1 1 1
1-1 65.06501-0082A HOUSING ; WATER PUMP 1 1 1 1 NS
1-2 65.06520-6007 SEAL ; MECHANICAL 1 1 1 1
1-3 65.06506-6001A IMPELLER ; WATER PUMP 1 1 1 1
1-4 65.93410-0087 BEARING 1 1 1 1
1-5 06.29020-0132 RING ; SNAP 55×2 1 1 1 1
1-6 65.06503-0174 PULLEY ; BELT 1 1 1 1
1-7 65.06512-0017A COVER ; WATER PUMP 1 1 1 1
1-8 06.56190-0709 RING ; SEAL 2 2 2 2
1-9 06.08092-2405 SCREW ; PLUG M16x1.5 2 2 2 2
1-10 65.90302-0026 PLUG ; CORE 1 1 1 1
2 65.98131-0060 SCREW ; CONNECTION 1 1 1 1
3 06.56190-0706 RING ; SEAL A14x20 1 1 1 1
4 65.06901A0074 GASKET ; WATER PUMP 1 1 1 1
5 06.01923-3122 BOLT ASS’Y M8x55 3 3 3 3
6 06.01913-3128 BOLT M8x85 3 3 3 3
1 110412-00076 FAN MOUNTING BRACKET ASS’Y 1 1 1 1
1-1 130709-00057 PULLEY ; FAN 1 1 1 1
1-2 65.06602-0004 BRACKET ; FAN MOUNTING 1 1 1 1
1-3 51.93410-0073 BEARING ; ANGULAR BALL 1 1 1 1
1-4 65.06603-0004 SHAFT ; FAN 1 1 1 1
1-5 06.01494-4517 BOLT ; HEX. 1 1 1 1
1-6 65.90710-0253 WASHER 1 1 1 1
1-7 06.29020-0152 RING ; SNAP 1 1 1 1
1-8 06.01913-3229 BOLT ASS’Y M10x90 2 2 2 2
2 06.01913-3229 BOLT ASS’Y M10x90 1 1 1 1
3 06.02091-0527 BOLT ; SOCKET HEAD HEX. 1 1 1 1
4 06.16110-0107 WASHER ; SPRING 1 1 1 1
5 65.06611-0138 FLANGE ; FAN 1 1 1 1
6 06.01913-3116 BOLT ; HEX. M8x28 6 6 6 6
7 65.06601-5048 FAN ; COOLING 1 1 1 1
8 06.01923-3117 BOLT ASS’Y M8x30 6 6 6 6
9 130710-00070 IDLE PULLEY ASS’Y 1 1 1 1
9-1 65.95840-0076 BRACKET ; IDLE PULLEY 1 1 1 1
9-2 130710-00071 PULLEY ; IDLE 1 1 1 1
9-3 65.93410-0087 BEARING 1 1 1 1
9-4 06.29020-0132 RING ; SNAP 55×2 1 1 1 1
10 130205-00319 V-BELT 1 1 1 1
11 110417-00052 BRACKET ; IDLE PULLEY 1 1 1 1
12 06.01914-3215 BOLT ASS’Y M10x25 2 2 2 2
13 65.95840-0079 BRACKET ; IDLE PULLEY 1 1 1 1
14 06.06225-0809 BOLT ; STUD M10x35 2 2 2 2
15 06.11063-8215 NUT ; HEX. M10 2 2 2 2
16 06.16731-2108 WASHER ; SPRING 2 2 2 2
17 06.01283-7235 BOLT ; HEX. 1 1 1 1
18 06.11250-2106 NUT ; HEX. 1 1 1 1
19 06.01283-7517 BOLT ; HEX. 1 1 1 1
20 06.16731-2111 WASHER ; SPRING 1 1 1 1
1 240102-00289 EXHAUST MANIFOLD ASS’Y 1 1 1 1
1-1 240102-00216A MANIFOLD ; EXHAUST 1 1 1 1
1-2 240102-00243 MANIFOLD ; EXHAUST 1 1 1 1
1-3 65.08901-0060 GASKET 1 1 1 1
1-4 65.90001-0157 BOLT ; HEX. 3 3 3 3
1-5 65.90801-0013 WASHER ; LOCK 2 2 2 2
1-6 65.90701-0054 WASHER 4 4 4 4
1-7 06.11063-8215 NUT ; HEX. M10 1 1 1 1
1-8 65.90201-0080 BOLT ; STUD 1 1 1 1
2 240102-00288 EXHAUST MANIFOLD ASS’Y 1 1 1 1
2-1 240102-00219 MANIFOLD ; EXHAUST 1 1 1 1
2-2 240102-00242 MANIFOLD ; EXHAUST 1 1 1 1
2-3 65.08901-0060 GASKET 1 1 1 1
2-4 65.90001-0157 BOLT ; HEX. 3 3 3 3
2-5 65.90801-0013 WASHER ; LOCK 2 2 2 2
2-6 65.90701-0054 WASHER 4 4 4 4
2-7 65.90201-0080 BOLT ; STUD 1 1 1 1
2-8 06.11063-8215 NUT ; HEX. M10 1 1 1 1
3 240102-00210 MANIFOLD ; EXHAUST 1 1 1 1
4 240102-00212 MANIFOLD ; EXHAUST 1 1 1 1
5 65.98701-0005 RING ; LAMINATED 4 4 4 4
6 65.08901-0047 GASKET ; EXHAUST MANIFOLD 10 10 10 10
7 65.90001-0156 BOLT ; HEX. 12 12 12 12
8 65.90001-0155A BOLT ; HEX. 8 8 8 8
9 65.91701-0541 SPACER 20 20 20 20
10 110443-00048 BRACKET ; EXHAUST ELBOW 1 1 1 1
11 06.01943-3317 BOLT ASS’Y M12x1.5×30 4 4 4 4
12 110443-00049 BRACKET ; EXHAUST ELBOW 1 1 1 1
13 06.01494-4507 BOLT ; HEX. 2 2 2 2
14 06.16731-2111 WASHER ; SPRING 2 2 2 2
15 110443-00050 BRACKET ; EXHAUST ELBOW 1 1 1 1
16 06.01943-3317 BOLT ASS’Y M12x1.5×30 4 4 4 4
17 110443-00051 BRACKET ; EXHAUST ELBOW 1 1 1 1
18 06.01494-4507 BOLT ; HEX. 2 2 2 2
19 06.16731-2111 WASHER ; SPRING 2 2 2 2
1 240203-00127 MANIFOLD ; INTAKE 2 2 2 2
2 65.08902-0078D GASKET ; INTAKE MANIFOLD 10 10 10 10
3 06.01923-3129 BOLT ASS’Y M8x90 1 1 1 1
4 06.01923-3132 BOLT ASS’Y M8x110 4 4 4 4
5 120122-00043 BOLT ; STAY 4 4 4 4
6 120122-00044 BOLT ; STAY 2 2 2 2
7 120122-00050 BOLT ; STAY 5 5 5 5
8 65.08203-0001A COVER ; INTAKE 2 2 2 2
9 65.08902A0057 GASKET 2 2 2 2
10 06.01913-3215 BOLT ASS’Y M10x25 5 5 5 5
11 420209-00246 PIPE ; AIR INLET 1 1 1 1
12 65.08902A0057 GASKET 2 2 2 2
13 120106-00508 BOLT ASS’Y 2 2 2 2
14 120106-00507 BOLT ASS’Y 1 1 1 1
15 120106-00509 BOLT ASS’Y 3 3 3 3
