Description

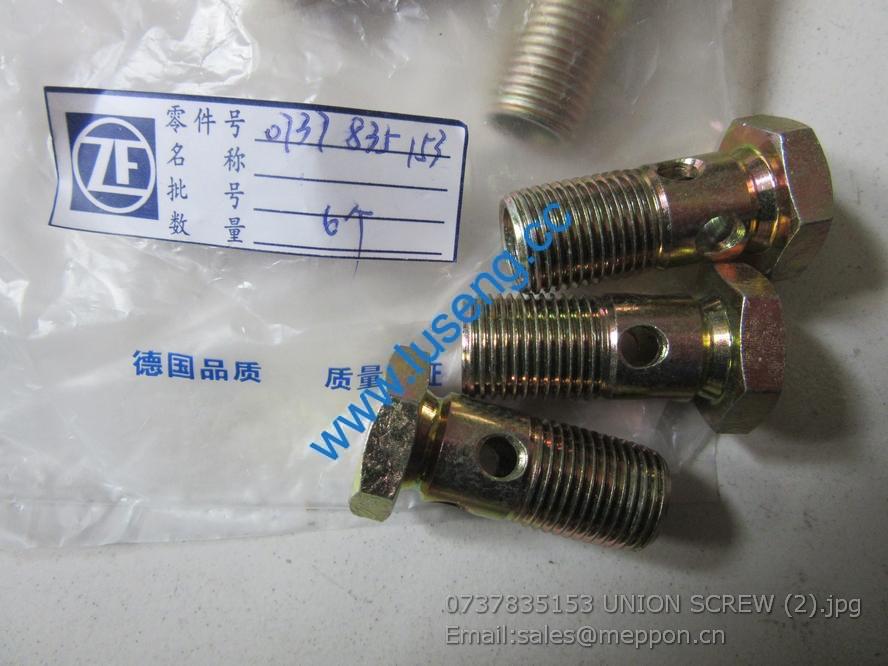

0737835153 UNION SCREW 4110000076262 SP100238 W030601310 W43001056 4110000076261

1 150107-00515 CRANKSHAFT ASS’Y 1 1 1 1
1-4 65.90030-0048A BOLT ; BALANCE WEIGHT 20 20 20 20
2 65.02130-0001 RING ; WEAR (FRONT) 1 1 1 1
3 65.02115-0066 GEAR ; CRANKSHAFT 1 1 1 1
4 06.22022-3065 PIN ; PARALLEL 1 1 1 1
5 401102-00033 HOLDER ; OIL SEAL 1 1 1 1
6 65.01110-0070 BEARING ; MAIN 5 5 5 5
7 65.01110-0080 BEARING ; MAIN 5 5 5 5
8 65.01111-6539 WASHER ; THRUST 1 1 1 1

1 65.02201-0049 DAMPER 1 1 1 1
2 65.90030-0015 BOLT ; SOCKET HEAD HEX. 12 12 12 12

1 65.02301-5014C FLYWHEEL ASS’Y 1 1 1 1
1-1 65.02301-0303E FLYWHEEL 1 1 1 1 NS
1-2 65.02310-0073D GEAR ; STARTER RING 1 1 1 1
2 65.02130-0002 RING ; WEAR (REAR) 1 1 1 1
3 65.91303-0005 PIN ; TAPER 1 1 1 1
4 120106-00548 BOLT ; HEX. 10 10 10 10
5 120808-00736 WASHER ; SPACER 1 1 1 1

1 150121-00107 CONNECTING ROD ASS’Y 10 10 10 10
1-2 65.02405-0008 BUSH ; CONNECTING ROD 1 1 1 1
1-3 65.02411-0008 BOLT ; CONNECTING ROD 2 2 2 2
2 65.02410-0320 BEARING ; CONNECTING ROD (STD) 10 10 10 10 G
3 65.02410-0200 BEARING ; CONNECTING ROD (STD) 10 10 10 10 G

1 65.02501-0704 PISTON 10 10 10 10
2 65.02503-0158 RING ; TOP 10 10 10 10 K
3 65.02503-0159 RING ; SECOND 10 10 10 10 K
4 65.02503-0678 RING ; OIL 10 10 10 10 K
5 130601-00042 PIN ; PISTON 10 10 10 10
6 65.90815-0022A RING ; LOCK 20 20 20 20
* 401004-00022 PISTON RING KIT 10 10 10 10
