Description

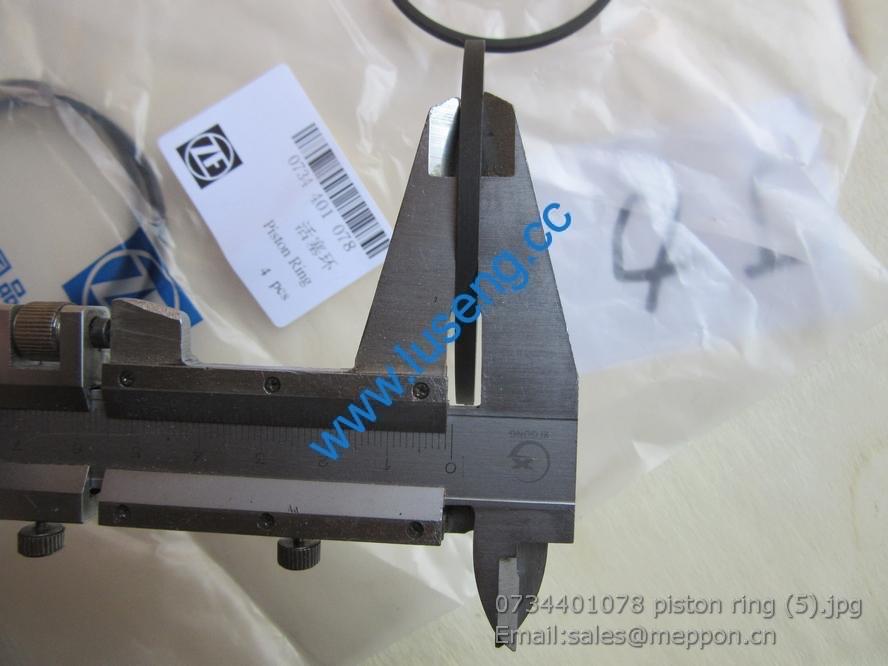

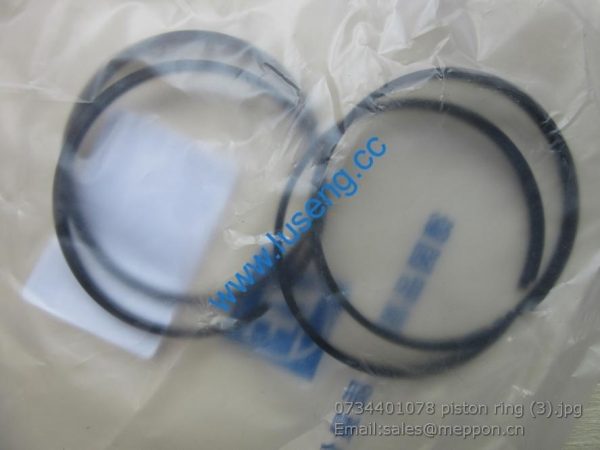

0734401078 piston ring 4110000076027 SP100223 W030611014 W43002500

1 150102-00667 CYLINDER BLOCK ASS’Y 1 1 1 1
1-1 150102-00673 CYLINDER BLOCK ASS’Y 1 1 1 1 NS
1-1A 150102-00676 BLOCK ; CYLINDER 1 1 1 1 NS
1-1B 140202-00008 BEARING CAP ASS’Y 5 5 5 5 NS
1-1BA 140202-00011 CAP ; BEARING 1 1 1 1 NS
1-1BB 06.22022-3061 PIN ; DOWEL 2 2 2 2
1-1C 140202-00020 BEARING CAP ASS’Y 1 1 1 1 NS
1-1CA 140202-00011 CAP ; BEARING 1 1 1 1 NS
1-1CB 65.91301-0071 PIN 2 2 2 2
1-1D 65.90020-0293B BOLT ; BEARING CAP 12 12 12 12
1-1E 65.04410-0018 BUSH ; CAMSHAFT 1 1 1 1 B
1-1F 65.04410-0078 BUSH ; CAMSHAFT 5 5 5 5 B
1-1G 06.01494-4316 BOLT ; HEX. M12x1.5×85 12 12 12 12
1-2 65.91606-0039 PLUG ; CORE 13 13 13 13
1-3 65.91606-0037 PLUG ; CORE 3 3 3 3
1-4 65.90302-0041 PLUG ; CORE 2 2 2 2
1-5 65.90310-0149A SCREW ; PLUG M26x1.5 6 6 6 6
1-6 06.56190-0726 RING ; SEAL 6 6 6 6
1-7 65.90310-0134 SCREW ; PLUG 4 4 4 4
1-8 06.56190-0732 RING ; SEAL 4 4 4 4
1-9 06.22022-1063 PIN 2 2 2 2
1-10 06.22022-3563 PIN ; DOWEL 2 2 2 2
1-11 65.90310-0131 SCREW ; PLUG 1 1 1 1
1-12 06.56190-0713 RING ; SEAL A18x24 1 1 1 1
2 65.91701-0274 PIN ; LOCATING 20 20 20 20
3 06.08041-2203 SCREW ; PLUG M14x1.5 1 1 1 1
4 06.56190-0706 RING ; SEAL A14x20 1 1 1 1
5 65.90310-0135 SCREW ; PLUG 1 1 1 1
6 06.56190-0706 RING ; SEAL A14x20 1 1 1 1
7 430215-00779 FLANGE 1 1 1 1
8 06.56190-0732 RING ; SEAL 1 1 1 1
9 65.90310-0134 SCREW ; PLUG 1 1 1 1
10 65.96601-0054 GASKET 1 1 1 1
11 06.01913-3220 BOLT ASS’Y M10x45 1 1 1 1
12 120122-00049 BOLT ; STAY 1 1 1 1
13 66.27435-6008 SWITCH ; THERMO 1 1 1 1
14 65.27405-5005 SENSOR ; TEMPERATURE 1 1 1 1
15 65.91605-0013 COVER 1 1 1 1

1 65.01201-0312C LINER ; CYLINDER 10 10 10 10
2 401002-00785 O-RING 20 20 20 20
3 401002-00786 O-RING 10 10 10 10
4 401002-00786 O-RING 10 10 10 10
