Description

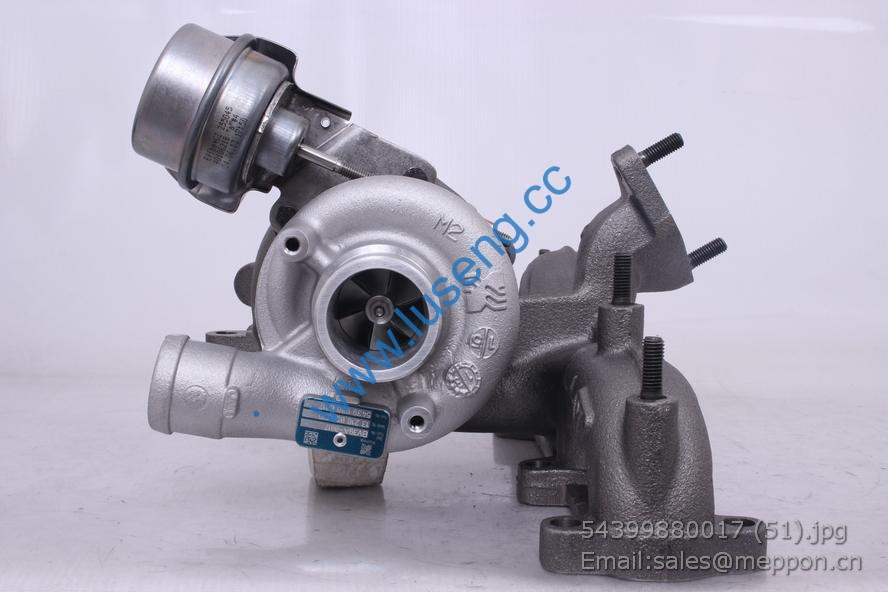

038253014A/S
038253010A/S Audi/VW turbocharger

2410200300200 第一道气环 First ring 4 4102Q-03002 QC4102T52用
2410500300200 第一道气环 First ring 4 4105QA-03002
QC4105T55、QC410
5T60用
2410200300300 第二道气环Second ring 4 4102Q-03003 QC4102T52用
2410500300300 第二道气环Second ring 4 4105QA-03003
QC4105T55、QC410
5T60用
2410200320000 油环合件Ring body 4 4102Q-03200 QC4102T52用
2410500320000 油环合件Ring body 4 4105QA-03200
QC4105T55、QC410
5T60用
2410200300101 活塞Piston 4 4102QA-03001 QC4102T52用
2410500300600 活塞Piston 4 4105QA-03001
QC4105T55、QC410
5T60用
5 GB/T893.2 挡圈Φ36 Pin retaining ringΦ36 8 GB/T893.2
2410200300600 活塞销Piston pin 4 4102Q-03006 QC4102T52用
2410500300600 活塞销Piston pin 4 4105QA-03006
QC4105T55、QC410
5T60用
7 2410200310400 连杆衬套Connecting rod cover 4 4102Q-03104B
8 2410200310101 连杆体Connecting rod 4 4102QA-03101
9 2410200300900 连杆轴瓦Connecting rod bearing 8 4102Q-03009
10 2410200310201 连杆盖Connecting rod cover 4 4102QA-03102
11 2410200310300 连杆螺栓Connecting rod bolt 8 4102Q-03103

1 2410200400701 飞轮紧固螺栓Bolt flywheel 6 4102T-04002
2 2410200410104 飞轮Flywheel 1 4102T-04101
3 2410200410200 飞轮齿圈Gear ring of flywheel 1 4102Q-04102
4 GB/T119 销B12×20 Pin B12×20 1 GB/T119
5 2410200400503 曲轴Crankshaft 1 4102T-04001
6 GB/T1906 键8×16 Key8×16 1 GB/T1906
7 2410200400400 曲轴正时齿轮Timing gear 1 4102Q-04004
8 2410200400900 甩油盘Oil plate 1 4102Q-04009 逐渐取消
2410200400302 曲轴皮带轮Crankshaft pulley 1 4102T-04003A 福田新状态用
2410200400300 曲轴皮带轮Crankshaft pulley 1 4102Q-04003
福田老状态和荣成海
山用
10 2410200401100 皮带轮螺母Crankshaft nut 1 4102ZLQ-04001
五、凸轮轴总成（4102QA-05000）Camshaft assembly
